XT-G6000C PTZ Laser Methane Monitoring System

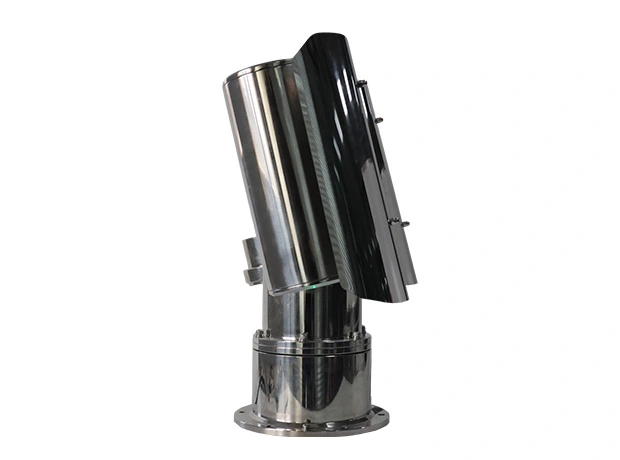

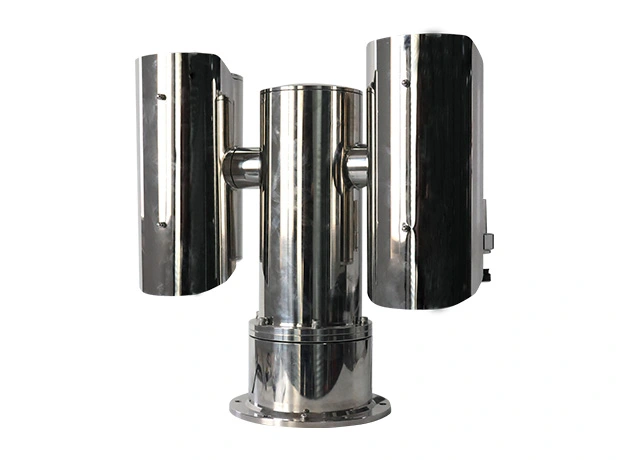

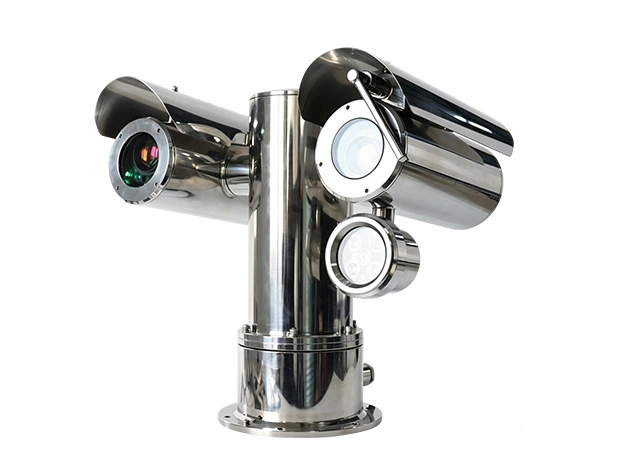

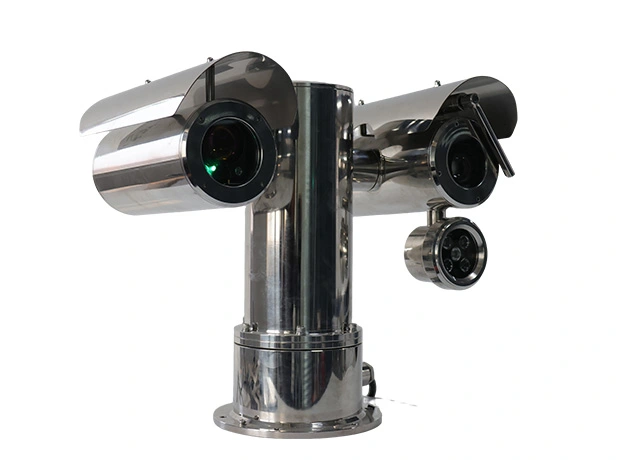

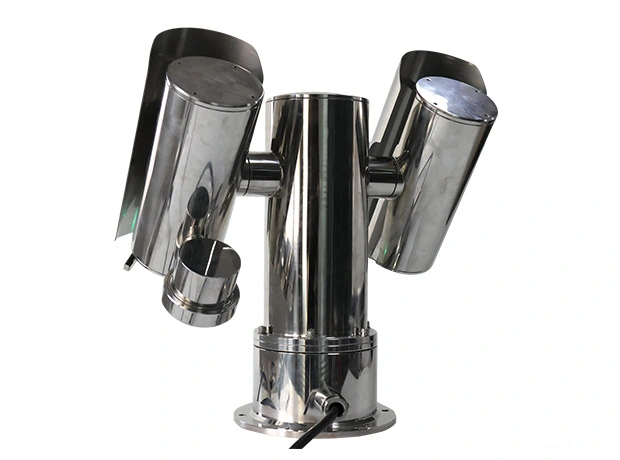

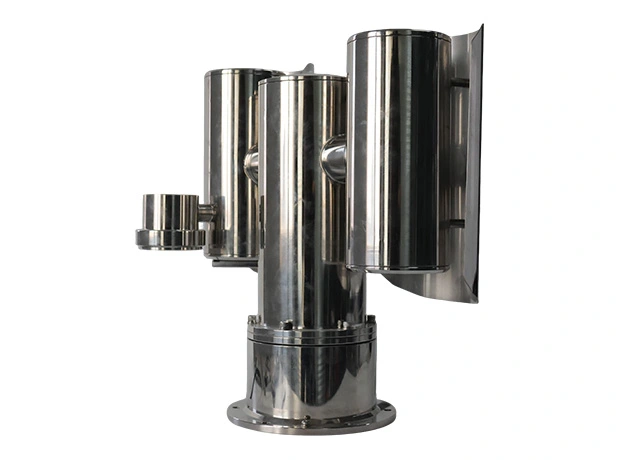

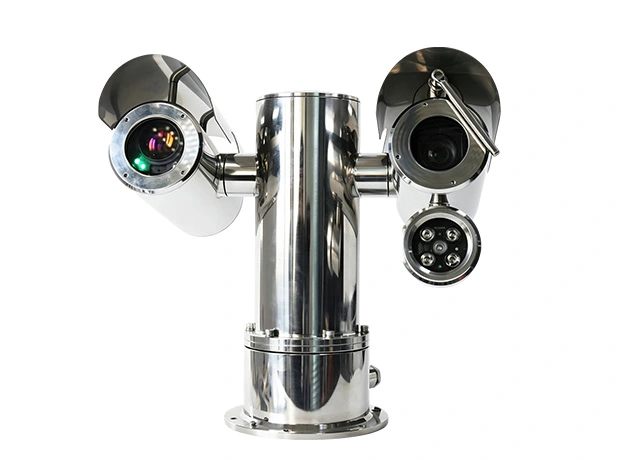

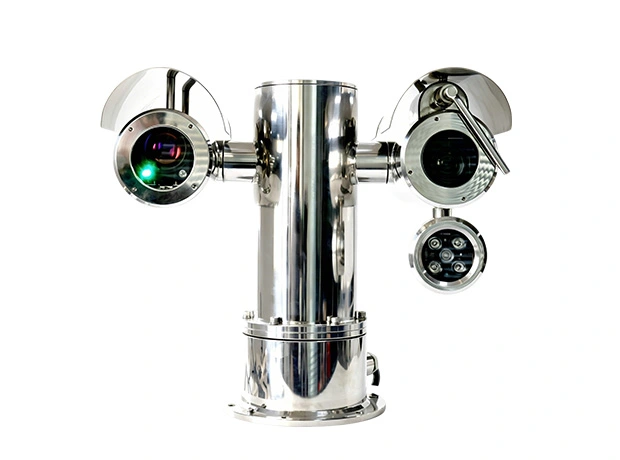

XT-G6000C PTZ Scanning Laser Gas Online Monitoring System

Automate repeated methane checks along defined sightlines around a facility.

Repeat an inspection route
PTZ scanning revisits selected points according to a configured patrol plan.
Review where an alarm occurred
Camera capture and local alerts help the operator investigate a reading.
Fit the site
Confirm blind spots, mounting, power and data integration in advance.

The system measures methane along visible paths; it does not guarantee full-area coverage.

Overview

XT-G6000C fixed scanning laser gas remote monitoring system is composed of main unit and upper computer. Adopting laser absorption spectroscopy principle, it realizes long-distance real-time online monitoring for methane concentration within laser detection area, with functions of signal collection, conversion and transmission.

Key Features

Automated Laser Scanning

3D three-dimensional detection
Sensor Lifespan up to 10 Years
Measurement Distance up to 200 Meters
Laser Telemetry Principle
Millisecond-Level Response & Ultra-High Sensitivity
Methane-Specific Detection, Free from Cross-Gas Interference

Camera & Monitoring Data

Synchronous capture by built-in camera
3D Scanning & Synchronized Video Monitoring

Patrol Routes & Controls

Customizable Patrol Routes for Automated Inspection
Background PC monitoring
360°horizontal 90°vertical rotating scanning
Supporting Monitoring Software

Technical Specifications

Applicable gas	CH₄
Detection principle	laser absorption spectroscopy
Measuring range	0~5000ppm·m, other ranges optional
Detection distance	0~100m / 0~150m optional
Response time	0.1s
Sensitivity	5ppm·m
Video function	equipped with video camera Horizontal rotation angle:0°~360°
Vertical rotation angle	-90°~+90°
Continuous operating time	>25000 hours
Power supply	AC220V
Mounting method	pedestal installation Output interface:RS485
Alarm setting	pre-alarm & alarm threshold configurable
Explosion-proof mark	Ex db ⅡC T6 Gb/Ex tb ⅡC T80℃ Db
Explosion-proof certificate No.	CNEx23.1596X
Protection grade	IP68
Product dimension	L467×W303×H414.5 mm
Weight	approx.30±0.5Kg
