Add a compact methane survey instrument to regular field rounds.
The thumb-size form factor suits walk-through checks.
The display and alarm help an inspector notice a changing reading.
Confirm whether remote reporting is required for your workflow.
4G reporting is optional; measurement reach depends on the target and operating conditions.

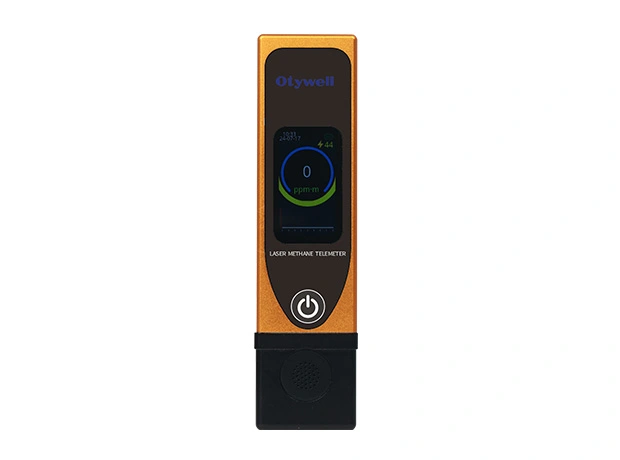

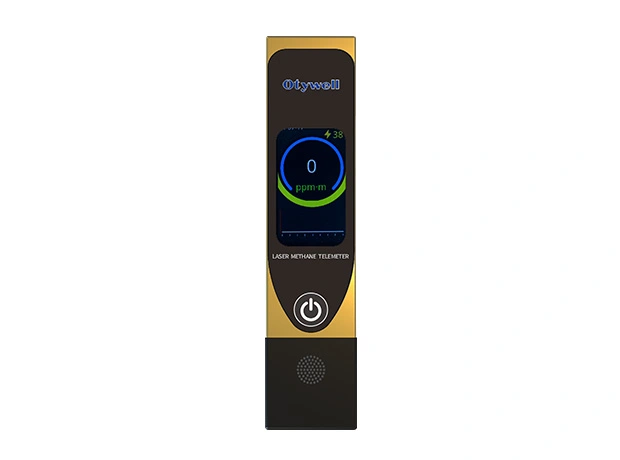

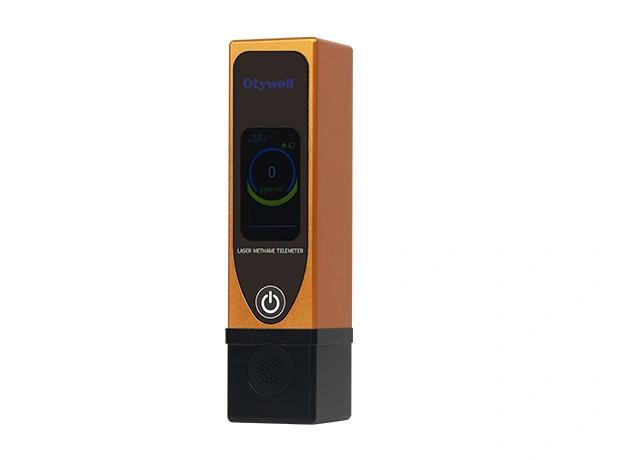

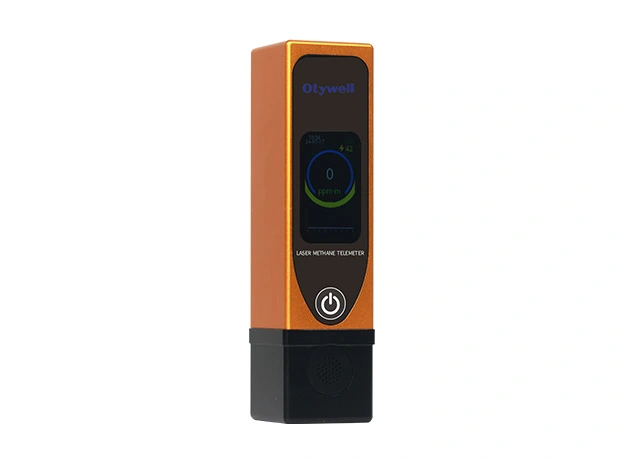

The handheld laser gas telemetry instrument consists of an optical-mechanical system, signal processing system, display and alarm system, and housing components. It is primarily used for long-distance measurement of methane or methane-containing gases (natural gas, coal gas, or similar gases) concentration. The telemetry device emits an infrared laser beam to the detection point, enabling rapid measurement of gas concentration between the detection point and the telemetry unit. For enhanced observation clarity, the device simultaneously projects a visible green laser beam toward the detection point. This system provides real-time, accurate methane concentration detection at specified locations with visual display. When concentrations exceed preset alarm thresholds, it triggers audible and visual alerts to facilitate immediate response actions by personnel.
.
| Detection range | (0～50000) ppm·m (default, customizable) |
| Detection range | (0-15) m, (0-20) m, or (0-30) m |
| Minimum detection limit | 5 ppm·m |
| Accuracy | ±10%FS |
| Response time | 0.5s |
| Continuous working time | 8h |
| Power supply method | Lithium battery |
| Display mode | 1.47-inch LCD |
| Alarm volume | ≥70dB (at 1 meter distance) |
| Explosion-proof certificate number | CCRI 24.2119X |
| Explosion-proof rating | Ex ia II C T4 Ga / Ex ia III C T200130℃ Da |
| Protection rating | IP65 |
| Ambient temperature | (-20 to 50) °C |
| Environmental humidity | (10–93)% RH, no condensation |
| Battery voltage | DC 3.7V |
| Battery capacity | 3400mAh |
| Product dimensions | 122*31*33mm |
| Net product weight | 220g |
Tell us the inspection route, target distance, data-upload needs and quantity.
