Detect UV-emitting flames where a clear indoor sightline is available.
UV sensing suits specified flames in the detector's field of view.
Relay and RS-485 outputs support site alarm integration.
Review welding, other UV sources, dust and steam before installation.
The manufacturer excludes outdoor use and locations near arc welding or UV lighting for this model.

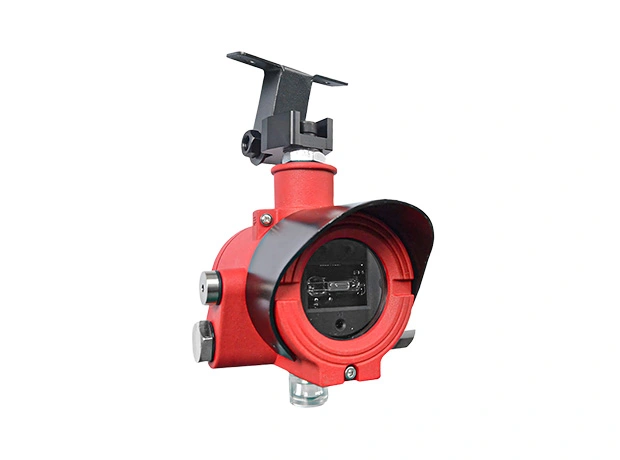

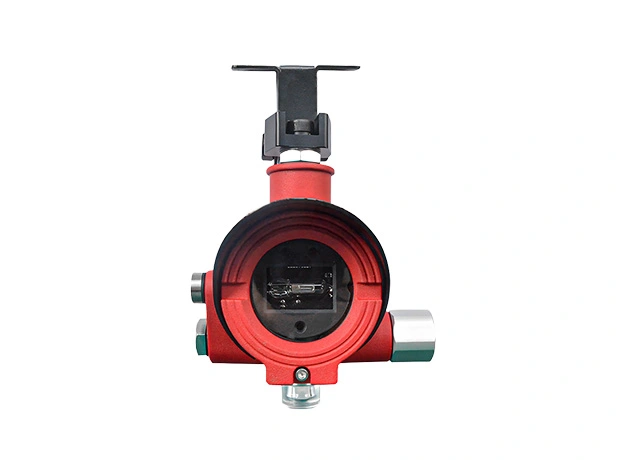

The S600Ex-UV point-type ultraviolet flame detector employs a high-sensitivity imported UV sensor, which reacts to ultraviolet radiation the instant a fire or explosive ignites. Combining the analysis of flame characteristics during a fire with logical judgment, it exhibits high immunity to false alarms caused by ambient light sources. The detector is suitable for smokeless liquid, gas, and solid fires, as well as other locations where deflagration may occur.
The detector is particularly suitable for fires involving metals such as sodium and magnesium; explosives; and gases such as hydrogen, hydrides, ammonia, and silanes. Use in environments with water vapor or dust accumulation will reduce the detector's sensitivity.
The detector is not suitable for use in environments with arc welding, ultraviolet light exposure, or outdoors.
| Spectral response range | 185~260 nm |
| Response time | 6 s |
| Viewing angle | ≤ 110° |
| Detection range | Class I |
| Operating temperature | -10 ~ 55 ℃ |
| Operating humidity | ≤ 95% RH |
| Operating pressure | 86 ~ 106 kPa |
| Working voltage | DC 24 V |
| Working current | Standby current ≤ 25 mA; Alarm current ≤ 35 mA |
| Compliance standard | GB12791-2006 |
| Explosion-proof grade | Ex d II CT6 |
| Ingress protection | IP66 |
| Signal Output | |
| Switch quantity relay contact output & RS485. Built-in DIP switch for detector address setting. | |
| Mechanical Structure | |
| Installation | Wall mounting / Ceiling mounting |
| Cable entry thread | 20mm×1.5mm, convertible to G1/2 (optional) |
| Dimension | 190 × 160 × 110 mm |
| Housing material | Die-cast aluminum |
| Weight | 1 kg |
| Advantages | Dustproof, explosion-proof and corrosion-resistant. |
Tell us the fuel, indoor sightline, nearby UV sources, alarm interface and quantity.
