S600-ExIR1 Point-Type Infrared Flame Detector

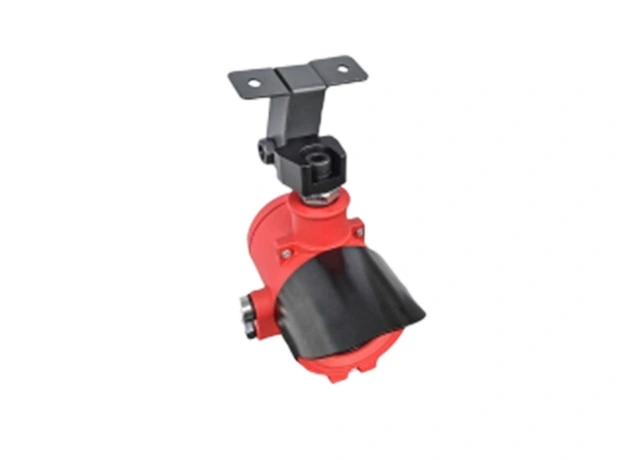

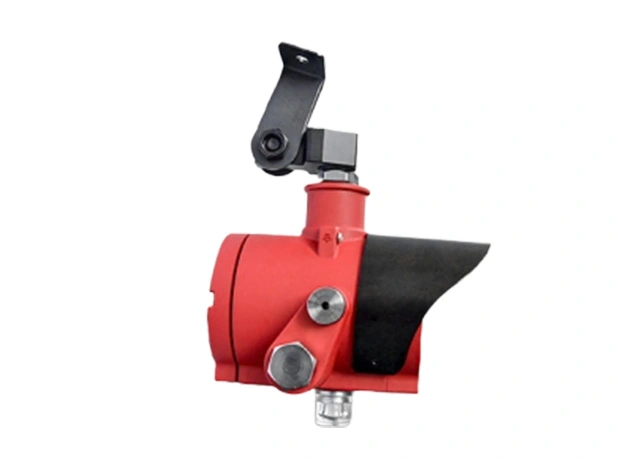

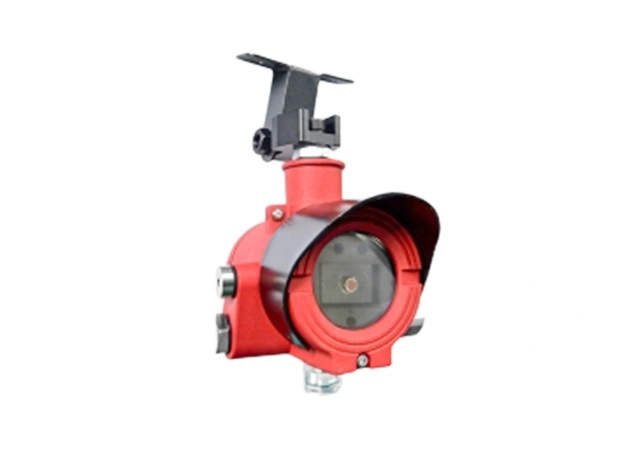

S600-ExIR1-UV point type infrared ultraviolet flame detector (single IR and UV, flameproof type)

Assess visible flame events with infrared and ultraviolet sensing at a fixed point.

Check two optical signals
IR and UV sensing helps evaluate a flame event within the detector's view.
Connect site alarms
Relay and RS-485 outputs support the specified control-system interface.
Place it thoughtfully
Confirm sightline, background light and hazard area before mounting.

Optical flame detection needs a clear view; confirm certification and fire scenarios for this model.

Overview

The S600Ex-IR1 point-type infrared flame detector includes an infrared sensor and an optical filter. The detector has the highest sensitivity to the CO2 emission spectrum (4.4μm) produced by the combustion of hydrocarbons. Combined with a logical comprehensive judgment based on the flame flicker frequency during a fire, it has high immunity to false alarms caused by ambient infrared light sources. Because sunlight sources are complex, and the detector uses only a single-wavelength infrared sensor for flame detection, the product is best suited for indoor use. The detector is suitable for liquid and gas fires, open flames that produce smoke, and locations where deflagration may occur.

Key Features

UV/IR Flame Detection & Coverage

4.4μm CO₂ Spectral Detection
Flame Flicker Judgment, Fewer False Alarms
6-Second Fast Response

Relay & RS485 Outputs

Relay + RS485 Output with DIP Address Setting

Installation & Protection

Ex d II CT6 Explosion-Proof
IP66 Dustproof & Waterproof
≤110° Wide Viewing Angle
Die-Cast Aluminum Housing, Corrosion-Resistant

Technical Specifications

Spectral response range	4.4 μm
Response time	6 s
Viewing angle	≤ 110°
Detection range	Class I
Operating temperature	-10 ~ 55 ℃
Operating humidity	≤ 95% RH
Operating pressure	86 ~ 106 kPa
Working voltage	DC 24 V
Working current	Standby current ≤ 25 mA; Alarm current ≤ 35 mA
Compliance standard	GB15631-2008
Explosion-proof grade	Ex d II CT6
Ingress protection	IP66

Signal Output
Switch quantity relay contact output & RS485. Built-in DIP switch for detector address setting.
Mechanical Structure
Installation	Wall mounting / Ceiling mounting
Cable entry thread	20mm×1.5mm, convertible to G1/2 (optional)
Dimension	190 × 160 × 110 mm
Housing material	Die-cast aluminum
Weight	1 kg
Advantages	Dustproof, explosion-proof and corrosion-resistant.
