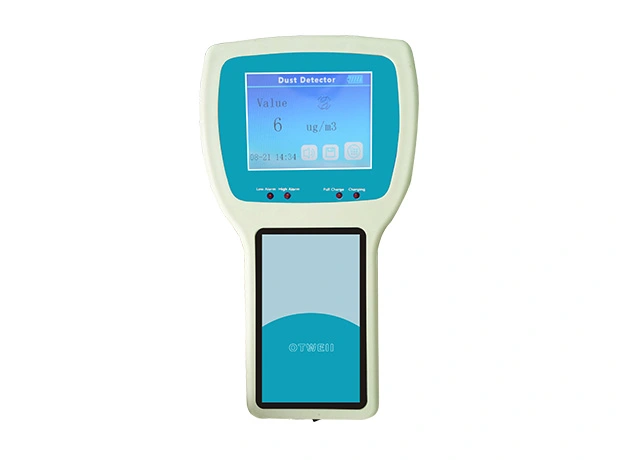

G1000 Portable Dust Concentration Detector

G1000 Dust Detector

Check dust concentration at a worksite with a portable laser-scattering meter.

Measure on site
The local display shows readings where the inspection takes place.
Set alert levels
Low and high alarms draw attention to selected thresholds.
Keep a record
Stored measurements support comparison and follow-up after a check.

Confirm particle fraction, range and calibration method for your application; this is not a regulatory reference monitor.

Request a Quote WhatsApp

Overview

The G1000 dust concentration meter is a dust detector made by using pump suction sampling based on the principle of laser scattering. It mainly detects suspended particulate matter or large particulate dust in the air, coal dust, fly dust, cement dust, etc. The data output is in concentration-weight mode.

The instrument uses advanced embedded technology, with the central processing unit processing the collected information, which has the advantages of fast processing speed, strong anti-interference ability and high measurement accuracy. This detector features a full Chinese touch screen, a high-precision laser dust concentration detection sensor, a high-precision data processor, and a high-power safe power supply. Compared with traditional detectors, this instrument uses a color Chinese interface, touch screen control, simplifies the operation steps, and enables users to operate this instrument more conveniently, quickly and intuitively.

Key Features

Dust Sampling & Local Alerts

2. Over-limit alarm: This detector can be set with two levels of alarm values (low alarm, high alarm), and the alarm values can be modified at will by the administrator (specific parameters are based on the type of dust monitored, see appendix). When the real-time concentration value is higher than the low alarm value, the detector sends out an alarm signal and the display shows "Level 1 alarm".
4. Zero drift: When the detector is used for a long time, or is exposed to a high concentration of dust for a long time during detection, it can cause zero drift, resulting in a larger measurement error. When the numerical error is large, the user can calibrate the zero point by themselves.
Laser Scattering Principle & Real-Time Sampling Display
High Sensitivity & Stable Reliability

Signal Outputs & Integration

1. Dust detection: This detector uses real-time data monitoring and display. It can accurately detect large particles of dust in the environment being inspected.
3. Data storage: This detector can manually store the detection data and detection time. Invalid data records can be manually cleared as required by the user. Up to 1000 test data records can be saved.
6. Password modification: This detector can be set to modify data parameters with only administrator user privileges, and the administrator password can be modified arbitrarily.

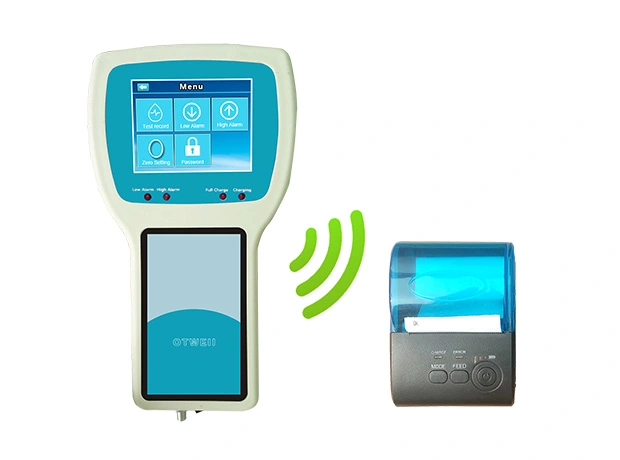

Optional Bluetooth Printer
Printable Dust Concentration Values

Installation, Protection & Service

5. Clock display: Time can be displayed (modified).
Standby Time ≥ 8 Hours
Color Touchscreen
OEM & ODM & OBM：

Technical Specifications

Range	0-500ug/m ³ or 0-1000mg/m ³ (optional)
Resolution	1ug/ m ³ or 1mg/m ³ (optional)
Measurement error	≤±20%
Reproducibility	(Consistency) error ≤±20%
Sampling method	Real-time sampling
Data update frequency	≥2 seconds
Detection data storage	1000 entries (erasable)
Operating ambient temperature	-10 to 60 ° C; Humidity:0 to 90%RH (no condensation)
Storage ambient temperature	-20 to 80 ° C; Humidity : 0 to 90%RH
Service life	5 years (normal temperature 20 ° C, humidity 50%RH, clean environment, normal intermittent operation)
