Inspect methane from an accessible position without approaching every raised or recessed point.
A handheld laser instrument supports checks along visible pipework and equipment.
The display and alarm keep the operator informed during a scan.
Stored measurements help plan a closer investigation.
Measurement distance and accuracy depend on configuration, target surface and field conditions.

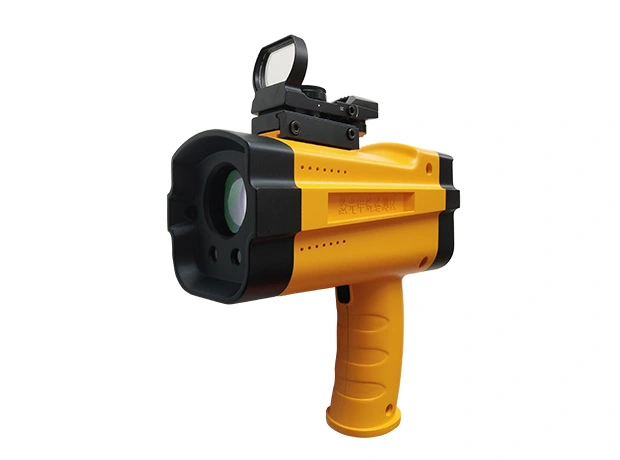

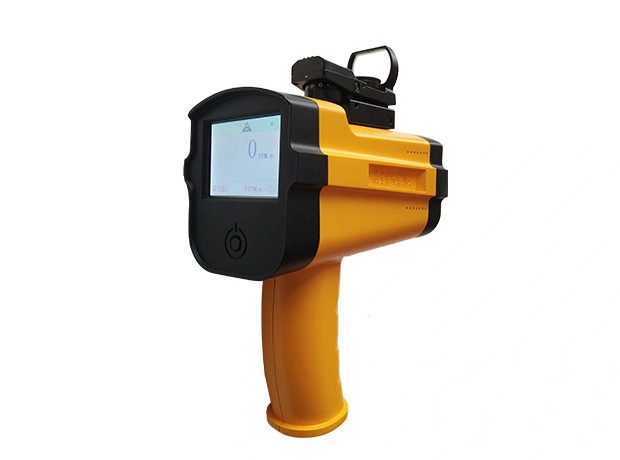

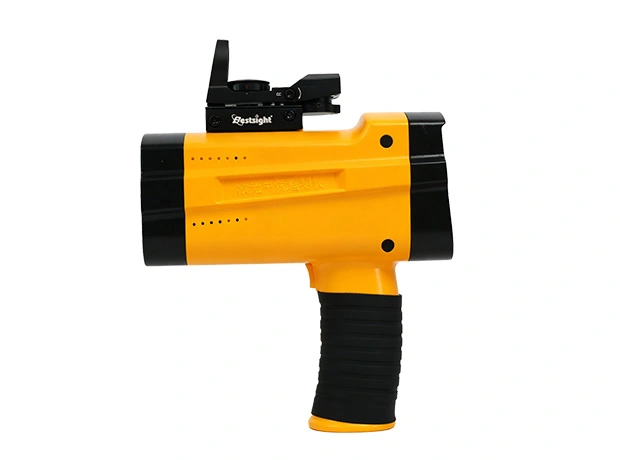

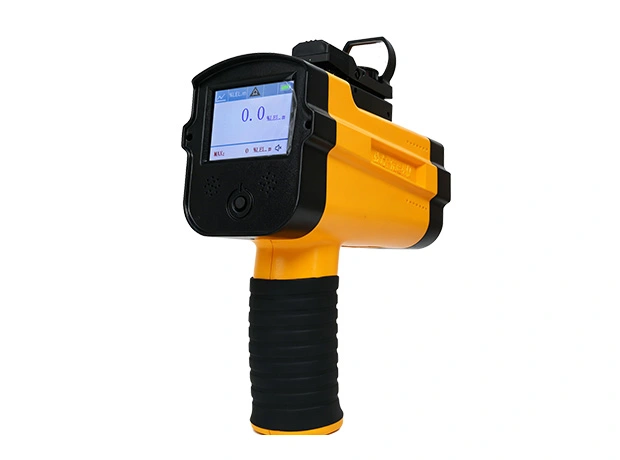

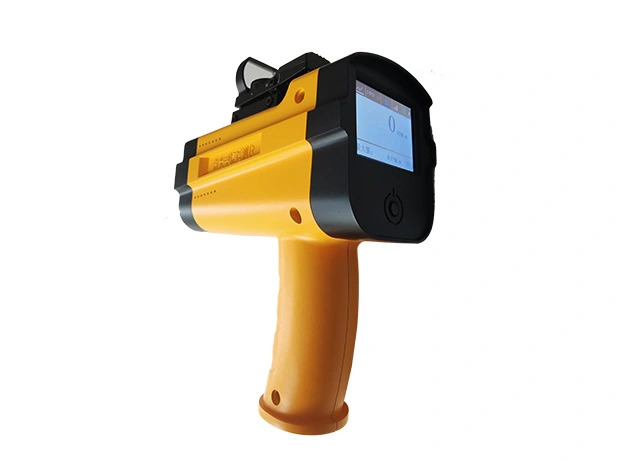

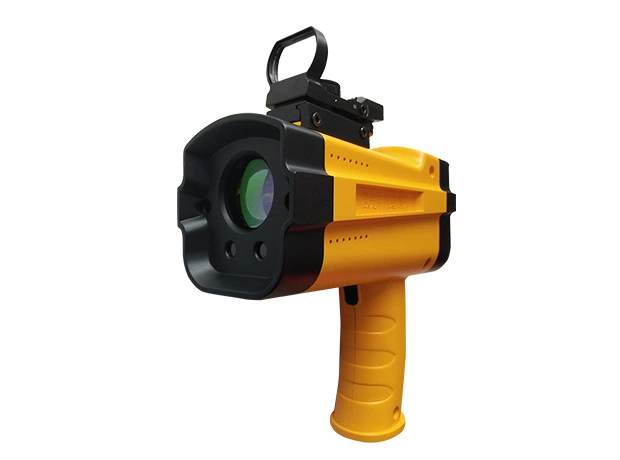

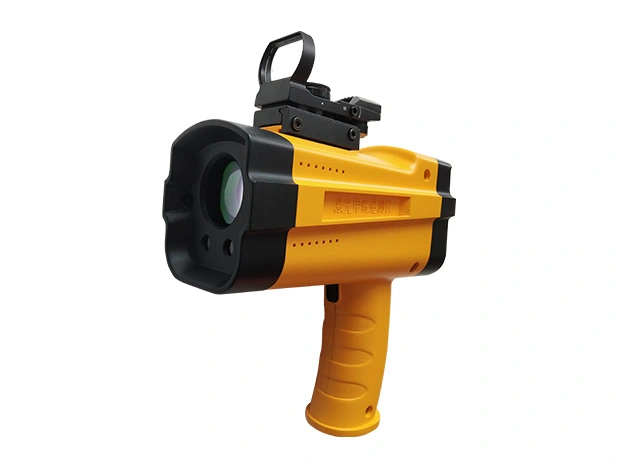

He G6000A laser methane telemeter consists of an optical-mechanical system, signal processing system, display and alarm system, and housing components. It is mainly used for long-distance measurement of methane or methane-containing gases (natural gas, gas or similar gases) concentration. The telemetry device emits an infrared laser beam to the detection point, enabling rapid measurement of methane concentration in the air mass between the two. For visual reference, it simultaneously projects a visible green laser beam onto the target area. This system provides real-time, accurate methane concentration monitoring with instant display. When alarm thresholds are exceeded, it triggers audible and visual alerts to prompt immediate response from personnel.
| Applicable gas | methane |
| Measuring range | 0~50000ppm·m(default); optional 0~10000ppm·m / 0~100000ppm·m |
| Detection distance | 0~100m(default, customized available) |
| Minimum detection limit | 5ppm·m |
| Response time | 0.1s |
| Accuracy | ±10%FS |
| Display mode | 2.4-inch color touch screen |
| Power supply | 7.4V, 3000mAh rechargeable lithium-ion battery |
| Alarm volume | ≥60db |
| Alarm display | The value changes with gas concentration, displayed as a curve. |
| Standby time | no less than 10 hours |
| Ambient temperature | -20℃~+50℃ |
| Relative humidity | 20~93%, non-condensing |
| Accuracy | ±3%FS(combustible) |
| Explosion-proof mark | Exia ⅡCT4 Ga / Exia ⅡC T130℃ Da |
| Explosion-proof certificate No. | CCRI24.2119X |
| Weight | 920g |
| Product dimension | 240×185×80 mm |
Tell us the target distance, surface, inspection route, reporting needs and quantity.
