ZM800 Breath Alcohol Detector with Printer

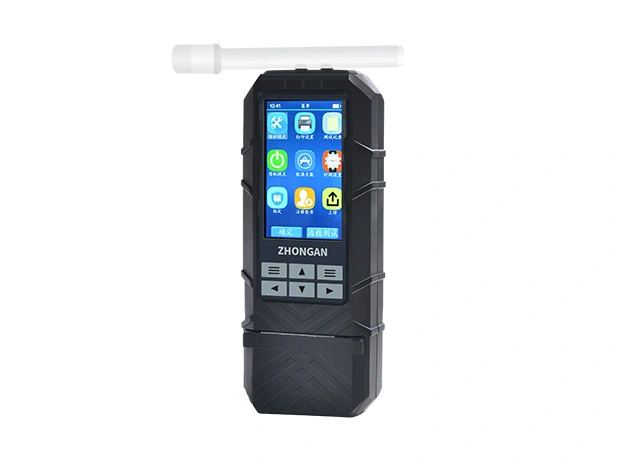

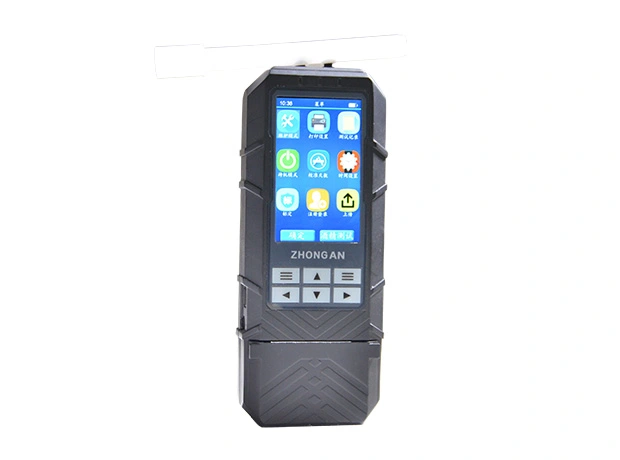

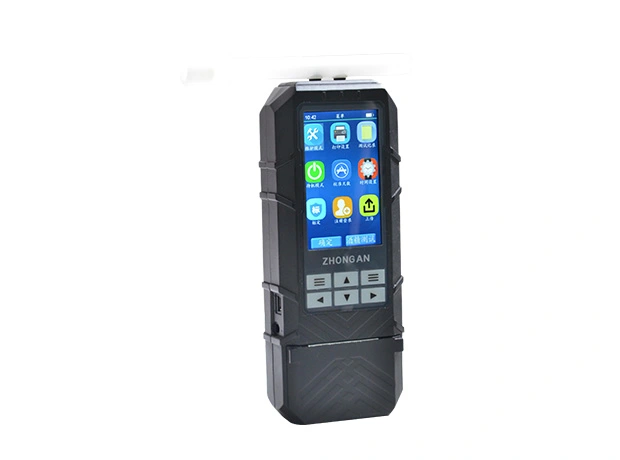

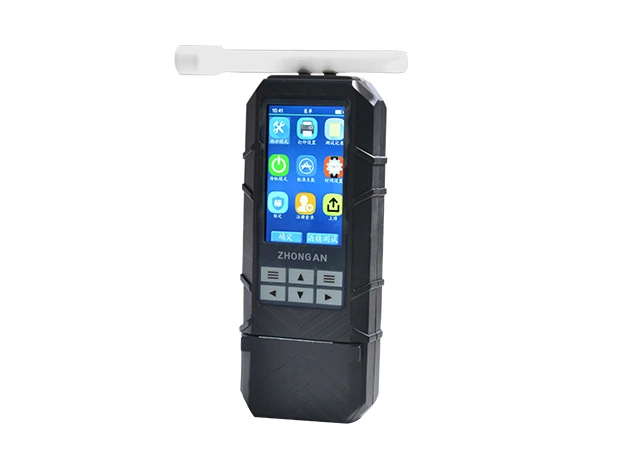

ZM800 Portable Alcohol Concentration Detector

Test breath alcohol on site and keep a printable result with the screening record.

Read results in the field
The color display supports an operator-led testing workflow.
Print at the test point
An integrated thermal printer provides a physical result for review.
Retain test records
On-device storage supports later retrieval; confirm capacity for the exact version.

Confirm the record capacity, mouthpiece procedure and calibration requirements for your ordered version.

Overview

The Outgoing Gas Alcohol Content Detector is a multifunctional device that combines alcohol detection with command stick functionality. Featuring an electrochemical alcohol sensor, it delivers precise measurement accuracy, rapid sensitivity response, strong interference resistance, and easy calibration.

The instrument's color LCD display offers a user-friendly interface for various environments, while its built-in font library enables convenient editing of vehicle information and law enforcement parameters. An integrated smart printer allows instant test results printing, and the one-time anti-backflow blowpipe ensures safe testing procedures for subjects.

The instrument is used to detect the alcohol after driving or before work, so as to effectively avoid accidents and protect people's life and property safety.

Key Features

Alcohol Sampling & Measurement

The electrochemical sensor with high precision and rapid sensitivity can effectively ensure the stability of performance and the accuracy of measurement
The sensor module is modularized to facilitate later replacement and calibration
Using 3.5-inch color screen, wide applicable illumination and wide working temperature range
It has undervoltage alarm and automatic power saving shutdown function
Dual Function in One: Detector + Command Stick
Electrochemical Sensor: High Precision, Fast Response, Anti-Interference
2-Second Response, Under 20s Warm-Up
Built-In Pump Suction Sampling

Test Records & Printing

The test record is automatically stored in massive quantity, which can be queried and stored 10,000 test records
It can automatically and intelligently manage the recording function of test site, time, tester and test result
Built-In Thermal Printer: Test and Print On Site

Controls, Power & Durability

Using industrial grade 32-bit embedded processor, the computing processing power is strong and the operation speed is fast
It has a wine testing mode, maintenance mode and sleep mode
Real-time time and temperature display
Time setting function is available
Functions such as vehicle information, driver information and user information can be set
Power supply by large capacity rechargeable lithium battery
Disposable Anti-Backflow Mouthpiece
3.5" Color LCD, Readable in Bright Light
2800mAh Battery, 10+ Hours Operation

Technical Specifications

Detection medium	alcohol
Detection principle	electrochemical alcohol sensor
Sensor life	2 years
Detection method	built-in pump suction
Measurement range	0~2.500mg/L (0~550mg/100mL)
Display	LCD
Deviation of indication	±5mg/100mL
Relative humidity	20~93%RH, non-condensing
Preheat time	<20s
Response time	≤2s
Drinking driving threshold	0.090mg/L (20mg/100mL)
Drunk driving threshold	0.363mg/L (80mg/100mL)
Power supply voltage	DC 7.4 V
Battery capacity	2800 mAh lithium ion rechargeable battery
Charging time	<6 h
Working time	≥10 h under normal detection status
Pressure limit	86kPa~106kPa
Product size	L212 mm × W77mm × H54mm
Product weight	approximately 404g
