Give workers a compact personal gas monitor selected for the hazard at their site.
Choose the gas and measuring range required by the task.
Local sound, light and vibration alerts warn the wearer at configured thresholds.
Stored alarm information helps the team follow up after a check.
Battery type and service life vary by version; confirm the exact model before ordering.

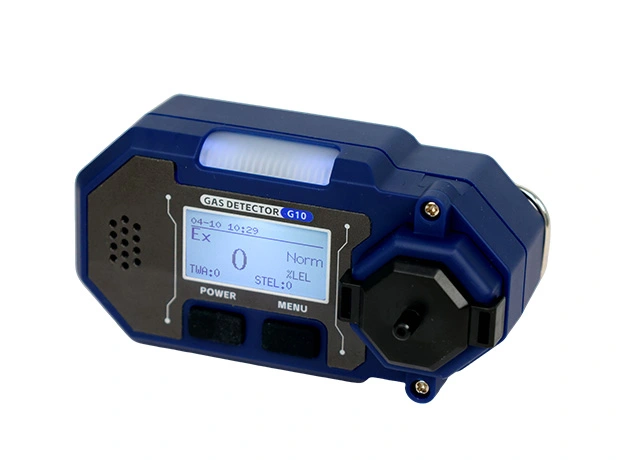

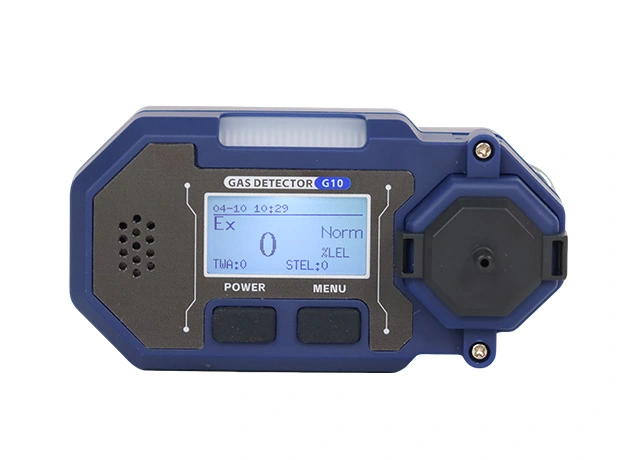

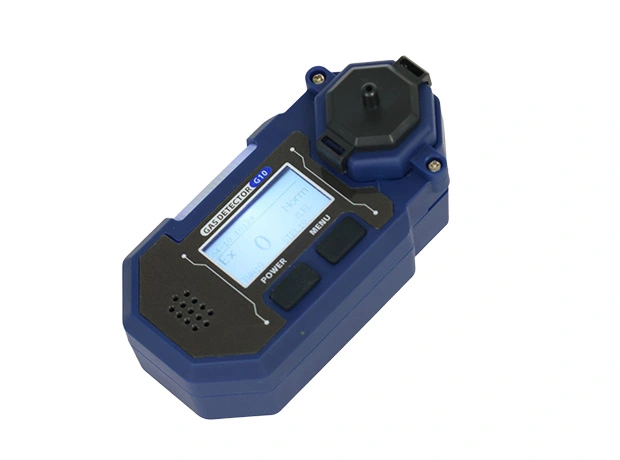

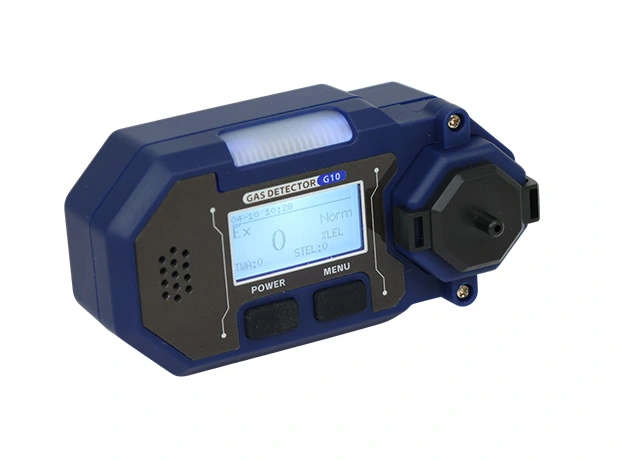

The G10 portable gas detection and alarm instrument is a low-power, high-sensitivity industrial gas detection and alarm device. It uses a disposable rechargeable battery and can last 2 to 5 years depending on the type of gas detected. Suitable for gas concentration detection in industrial and commercial settings: gas stations, chemical workshops, hazardous materials warehouses, petrochemical sites, laboratories, and other venues.
It effectively ensures the safety of personnel and prevents damage to production equipment. The product can detect different gases based on various sensor types. Compact in size, easy to operate, portable, and highly resistant to vibration. The product employs high-resolution dot matrix LCD display technology, providing a more intuitive and clear view. The detection alarm uses a natural diffusion detection method, with high-quality gas sensors as the sensitive elements, offering excellent sensitivity and outstanding repeatability; the instrument is controlled by an embedded microcomputer, making it easy to operate, fully functional, and highly reliable, with multiple adaptive capabilities; its compact and aesthetically pleasing portable design not only makes it hard to put down but also facilitates mobile use.
The instrument's casing is made of high-strength engineering plastic combined with anti-slip rubber, providing high strength, a good feel, and protection against water, dust, and explosion. It is adapted to areas containing explosive gas mixtures in zones 1 and 2 with iiA, iiB and iiC; dust tight enclosures are used in zones 21 and 22.
| Suitable gases | combustible/gas toxic/harmful gas/oxygen, etc |
| Detection principle | catalytic combustion type, electrochemical type, infrared type, laser, semiconductor type and so on |
| Detection method | free diffusion |
| Display mode | LCD display |
| Measurement range | (0~100)%LEL (combustible); Toxic gases are shown in the attached table. |
| Resolution | 1%LEL, 1ppm, 0.1ppm/%VOL |
| Accuracy level | ±3%FS (combustible/oxygen); ±5% FS (toxic) |
| Low limitalarm set value | 20%LEL(combustible) |
| Upper limit alarm setting | 50%LEL(combustible) |
| Response time | less than 30s |
| Environmental temperature | -25℃~+55℃ |
| Relative humidity | (10~95)% |
| Powersupply voltage | DC 3.6 V 2 / 11 |
| Battery capacity | 5200 mAh lithium sub-unchargeable battery |
| Workingtime | If combustible gas is detected, it can be used for 2 years (12h per day); If toxic and harmful gases/oxygen are detected, it can be used for 5 years (12h per day) |
| Pressure limit | 86kPa~106kPa |
| Product size | L91 mm × W47mm × H60mm |
| Product weight | approximately 127 g |
| Explosion-proof mark | Ex ia ⅡC T4 Ga；Ex ib ⅢCT130℃ Db |
Tell us the target gas, range, operating time, application and quantity. Confirm whether you need an accessory for remote sampling.
