TCB2-G Fixed Gas Leak Detector

Home > Products

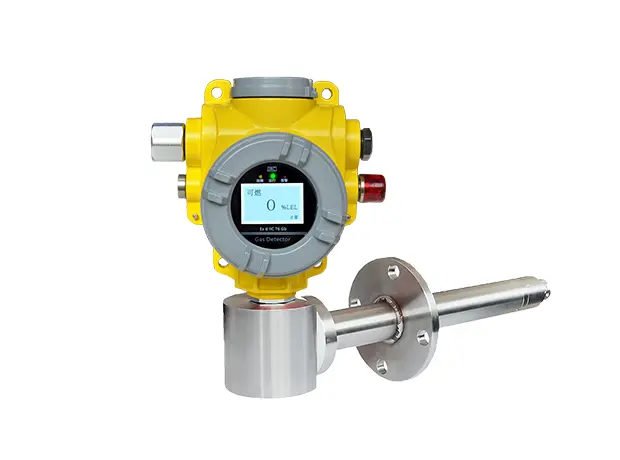

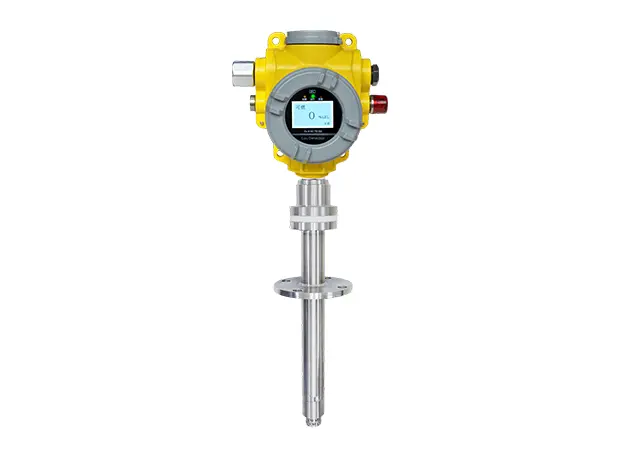

TCB2-G Fixed Gas Leak Detector

TCB2-G Fixed Gas Leak Detector

Monitor gas concentration inside a pipeline or piece of equipment with a flange-mounted detector.

  • Place the sensing point inside the process

    The listed flange connection and high-temperature sensor option address an in-line measurement location.

  • Make the alarm available locally

    Configurable setpoints and integrated audible/visual indication support a response near the installation.

  • Connect the process system

    The listed switch and signal output options support PLC or DCS monitoring; modular sensors simplify service planning.

Confirm gas, process temperature, flange size, sensor configuration and output wiring.

Request a Quote WhatsApp

Overview

The TCB2-G is a smart, multifunctional gas detection instrument. Featuring high-performance detection components and computer-based microcontrol technology, it is manufactured using advanced fully automated assembly processes. The device offers on-site buzzer alerts and flashing indicator lights, while displaying real-time monitoring of gas concentrations. The TCB2-G split-type gas detector is designed for gas detection in pipelines used for high temperature gas drying and exhaust applications, enabling detection both inside pipelines and within equipment

Key Features

Gas Sensing & Local Warnings

  • Customizable Alarm Setpoints
  • High temperature resistant sensor, operable under temperature up to 200°C
  • Built-in integrated audible & visual alarm system
  • Modular sensor structure for convenient maintenance
  • Wide Gas Selection
  • Modular Sensor Design for Easy Replacement & Maintenance
  • Flange Mounting for Pipeline Gas Concentration Detection

Control-System Signals & Connections

  • LCD display with Chinese menu, user-friendly interface
  • Flange connection design for gas detection inside pipelines and equipment
  • Realize data upload to PLC, DCS and other control systems
  • Equipped with two groups of digital signal output
  • Optional 4-Bus Signal or 4-20mA Signal

Installation, Power & Service

  • Support wireless infrared remote control operation
  • On-Site Calibration
  • IP66 Waterproof & Dustproof
  • Dual-Chamber Design
  • Low Power Consumption Design, No Extra Power Supply Required
  • OEM & ODM & OBM：
  • Optional Stainless Steel Housing

Technical Specifications

Detection Principle  catalytic combustion type; electrochemical type; infrared type
Tracer gas  combustible gas; liquid vapor TVOC; toxic and hazardous gas; oxygen
Measuring range  0～100%LEL; 0~10000ppm
Resolution ratio  1%LEL; 1ppm/0.1 ppm
Measurement error  full range ±3%FS (LEL)
Status Indicator  LCD display
Debug mode  remote controller
Ambient temperature  －20℃～+50℃
Relative humidity  20～93%RH, non-condensing
Power supply  DC24V±10%
Output signal  4–20 mA or RS485
Mounting thread  G1/2
Connection cable  ≥1.5mm²×3；≥1.5mm²×4
Max distance between detector and host  ≤1500m
Total machine weight  ≤3000g

Available Gases & Detection Ranges

The gases and ranges below are configuration options. TCB2-G Fixed Gas Leak Detector; confirm the final sensor combination and ranges with our team.

Common Gas Parameter listing
Gas detected Measuring Range Optional Range Resolution Rat Response Time
LEL -combustible gas 0-100%LEL 0-100%VOL (Infrared or catalytic ) 1%LEL/1%vol ≤10s
carbon monoxide 0-1000PPm 0-500/2000/5000PPm 0.1/1PPm ≤10s
TVOC 0-100PPM 0-100PPM 0.1PPm/1PPM ≤15s
hydrogen 0-100%LEL 0-1000PPM 1%LEL/1PPM ≤15s
natural gas 0-100%LEL 0-100%LEL 1%LEL ≤10s
Oxygen-O2 0-30%VOL 0-30%、0-100%VOL 0.1%vol ≤10s
ozone 0-10PPm 0-20、100PPm 0.01PPm/0.1PPM ≤15s
hydrogen sulfide-H2S 0-100PPm 0-50、200、1000PPm 1/0.1PPm ≤10s
Methane-CH4 0-100%LEL 0-100%VOL 1%LEL/1%vol ≤10s
fluorine 0-10PM 0-1、10PPM 1/0.1PPm ≤15s
hydrogen chloride 0-20PPm 0-20/50PPm/100PPM 0.01/0.1PPm ≤15s
Nitrogen-N2 0-30%VOL 0-30%VOL、100%VOL 0.1%LEL/1PPM ≤10s
hydrogen 0-100%LEL 0-1000PPm 1%LEL/0.1PPm ≤15s
chlorine 0-20PPm 0-10、100PPm 0.1PPm ≤15s
ammonia gas 0-100PPm 0-50、500、1000PPm 1/0.1PPm ≤15s
oxynitride 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
methanal 0-20PPm 0-50、100PPm 1/0.1PPm ≤15s
sulfur dioxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
nitric oxide 0-250PPm 0-500、1000PPm 1PPm ≤15s
nitrogen oxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
phosphine 0-20PPm 0-20、100PPm 0.1PPm ≤15s
acrylonitrile 0-100PPM 0-100PPm 0.1/1PPm ≤15s
carbon dioxide 0-5000PPm 0-1%/5%/10%VOL(Infrared ) 1PPM/0.01%VOL ≤15s
hydrogen fluoride 0-10PPm 0-1、10、50、100PPM 0.01/0.1PPm ≤15s
Xylene/methylbenzene 0-20PPm 0-5、10、50、100PPm 0.01/0.1PPm ≤15s
oxirane 0-100PPm 0-100PPm 1/0.1PPm ≤15s
For other gases and measuring ranges, please contact us directly!
Note: Not all gases and range are listed, if you need more information, please contact us.
