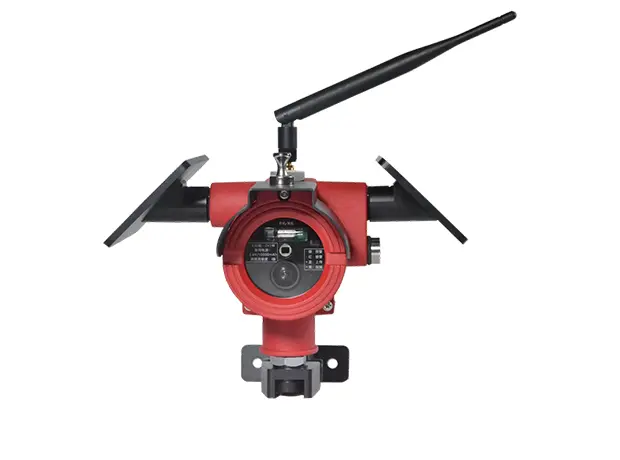

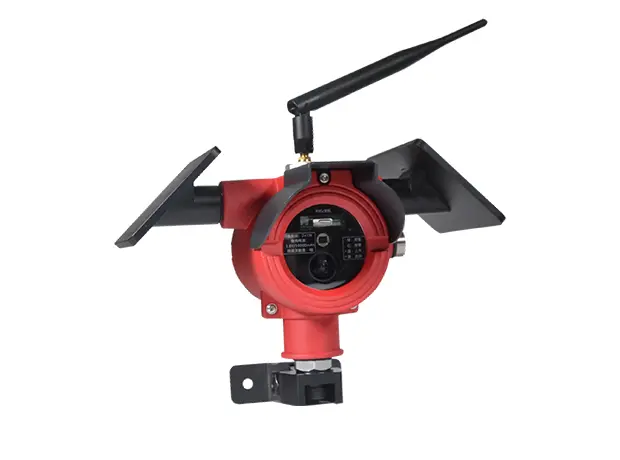

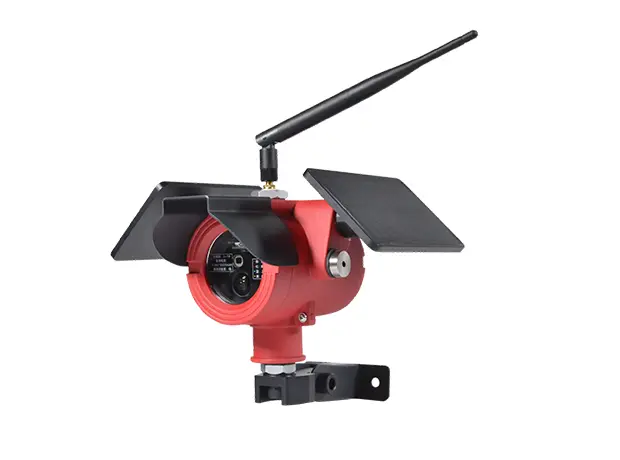

Solar-Powered Flame Detector with NB-IoT Data Upload

Home > Products
Solar-Powered Flame Detector with NB-IoT Data Upload

Solar-Powered Flame Detector with NB-IoT Data Upload

Monitor for flame at a remote site with solar power and a listed NB-IoT communication option.

  • Reduce power-cable constraints

    Solar energy reserve and the built-in battery support installation planning where permanent power is difficult.

  • Bring the warning to the operator

    The product's cloud-connected monitoring and anti-tamper alert help teams notice a remote event or device movement.

  • Specify the sensing arrangement

    Confirm whether the ordered detector uses the listed UV, infrared or dual-spectrum configuration for the site.

Share the installation location, power conditions, communication coverage and required sensing version.

Request a Quote WhatsApp

Overview

The flame detector uses IoT infrared sensors and a smart cloud IoT management platform to address the traditional problems of “difficult detection, late detection, and difficult networking” in fire monitoring. It enables early detection, early warning, and early response to forest fires, thereby avoiding greater losses. The detector also has an anti-tampering feature that triggers an alarm if the detector is moved abnormally.

Key Features

Available Flame-Sensing Versions

  • Solar-powered Flame Detector
  • R Flame Detector
  • UV Flame Detector
  • UV & IR Dual Spectrum Flame Detector

Solar Power & Battery Backup

  • Solar energy reserve with lithium battery backup
  • Low-power solar and battery operation; no external mains supply required for the configured system
  • Built-in 10,000 mAh battery

Technical Specifications

Detection principle

red/UV light

Wavelength range

infrared 4.4μm ultraviolet 185 ~ 260nmUV

Battery specification

3.6V/10000mAh

Solar energy

2X1W

Camera

30W pixels

Spirit acuity

Level 1

Response time

< 30s

Preheating time

60s

Flame detection delay

3S

Ambient temperature

-10℃ ~ 55℃; The maximum surface temperature of the shell shall not exceed 80℃

Relative humidity

< 93%RH

Explosion-proof mode

flameproof type

Explosion-proof grade

Ex dⅡC T6Gb

Protection grade

IP67

Indicator

green indicates early warning, red indicates alarm, blue data upload, yellow fault

Weight

≤1200g

Dimensions

235mm x170mm x125mm (without antenna)

Pressure limit

86KPa ~ 106KPa

Use place

Use in dangerous places with explosive combustible gas IIA~IIC class and temperature group of T1~T6
