OT800 Portable Multi Gas Analyzer

Home > Products
OT800 Portable Multi Gas Analyzer

OT800 Portable Multi Gas Analyzer

Configure OT800 for 1–16 selected gases and investigate concentrations with pumped sampling and a large touchscreen.

  • Select the gases for the site

    Specify the 1–16 gas configuration and measuring ranges needed for the inspection task.

  • See trends while measuring

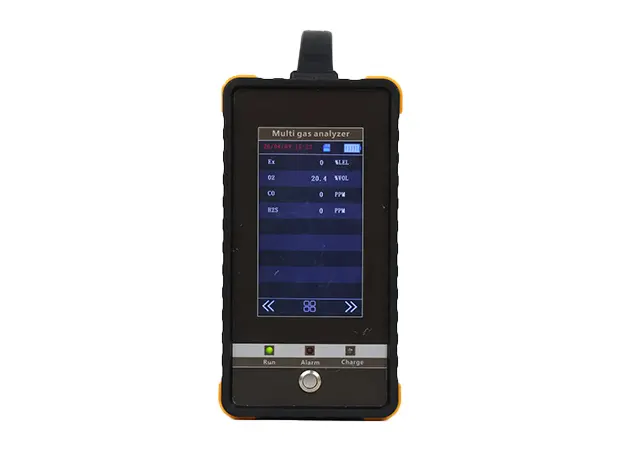

    The color touchscreen and concentration curve help the operator follow changes during a survey.

  • Configure review and reporting

    Adjustable thresholds, field calibration and optional PC or cloud upload support the requested workflow.

Confirm the exact gas-channel configuration, ranges, sample path and optional data connection.

Request a Quote WhatsApp

Overview

The OT800 series is a high-sensitivity portable multi-gas detector for industrial use. It is suitable for gas leakage emergency rescue, underground pipelines, mines and other places, which can effectively protect the life safety of staff and production equipment from loss. It is mainly used to detect pipeline gas leakage, and can also detect different gases according to different sensor types. The product is compact, easy to operate, portable and shock-resistant. It adopts high-resolution dot matrix LCD display technology for more intuitive and clear display.

Key Features

Multi-Gas Analysis & Pump Sampling

  • Customizable Alarm Setpoints
  • Rapid detection of gas leakage points
  • Adjustable measuring range
  • Fast preheating and rapid response time
  • Configurable detection of 1–16 gases
  • Real-Time Concentration Curve Display
  • Pumped Sampling & Fast Response
  • Audible and vibration alarm signals

Records & Remote Reporting

  • Optional PC Data Upload
  • Optional 4G Cloud Platform Upload with GPS Function

Display, Calibration & Field Use

  • On-Site Calibration
  • Large-screen color Chinese menu operation
  • High-resolution touch LCD display
  • Convenient zero adjustment
  • Standby Time ≥ 8 Hours
  • Explosion-Proof Design
  • IP65 Waterproof & Dustproof
  • OEM & ODM & OBM：

Technical Specifications

Product name Multi-gas analyzer
Product specification According to the type of gas being measured
Sampling mode: Built-in pump suction type
Response time ≤30s
 Indication error ≤3%FS
Work environment  temperature -10℃～55℃；Relativehumidity：≤93%(non condensing)


Indication mode Color LCD touch screen operation
Charging time  no less than 10 hours
Battery specification: DC7.4V 11000mAH  lithium ion rechargeable battery
Size 293x110x210(mm)

Videos

Available Gases & Detection Ranges

The gases and ranges below are configuration options.OT800 Portable Multi Gas Analyzer; confirm the final sensor combination and ranges with our team.

Common Gas Parameter listing
Gas detected Measuring Range Optional Range Resolution Rat Response Time
LEL -combustible gas 0-100%LEL 0-100%VOL (Infrared or catalytic ) 1%LEL/1%vol ≤10s
carbon monoxide 0-1000PPm 0-500/2000/5000PPm 0.1/1PPm ≤10s
TVOC 0-100PPM 0-100PPM 0.1PPm/1PPM ≤15s
hydrogen 0-100%LEL 0-1000PPM 1%LEL/1PPM ≤15s
natural gas 0-100%LEL 0-100%LEL 1%LEL ≤10s
Oxygen-O2 0-30%VOL 0-30%、0-100%VOL 0.1%vol ≤10s
ozone 0-10PPm 0-20、100PPm 0.01PPm/0.1PPM ≤15s
hydrogen sulfide-H2S 0-100PPm 0-50、200、1000PPm 1/0.1PPm ≤10s
Methane-CH4 0-100%LEL 0-100%VOL 1%LEL/1%vol ≤10s
fluorine 0-10PM 0-1、10PPM 1/0.1PPm ≤15s
hydrogen chloride 0-20PPm 0-20/50PPm/100PPM 0.01/0.1PPm ≤15s
Nitrogen-N2 0-30%VOL 0-30%VOL、100%VOL 0.1%LEL/1PPM ≤10s
hydrogen 0-100%LEL 0-1000PPm 1%LEL/0.1PPm ≤15s
chlorine 0-20PPm 0-10、100PPm 0.1PPm ≤15s
ammonia gas 0-100PPm 0-50、500、1000PPm 1/0.1PPm ≤15s
oxynitride 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
methanal 0-20PPm 0-50、100PPm 1/0.1PPm ≤15s
sulfur dioxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
nitric oxide 0-250PPm 0-500、1000PPm 1PPm ≤15s
nitrogen oxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
phosphine 0-20PPm 0-20、100PPm 0.1PPm ≤15s
acrylonitrile 0-100PPM 0-100PPm 0.1/1PPm ≤15s
carbon dioxide 0-5000PPm 0-1%/5%/10%VOL(Infrared ) 1PPM/0.01%VOL ≤15s
hydrogen fluoride 0-10PPm 0-1、10、50、100PPM 0.01/0.1PPm ≤15s
Xylene/methylbenzene 0-20PPm 0-5、10、50、100PPm 0.01/0.1PPm ≤15s
oxirane 0-100PPm 0-100PPm 1/0.1PPm ≤15s
For other gases and measuring ranges, please contact us directly!
Note: Not all gases and range are listed, if you need more information, please contact us.
