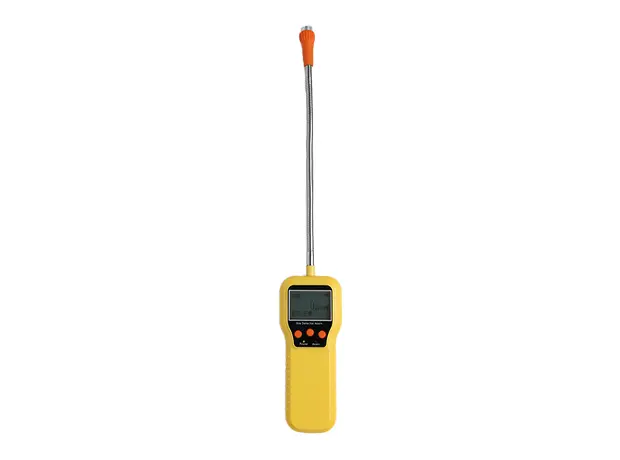

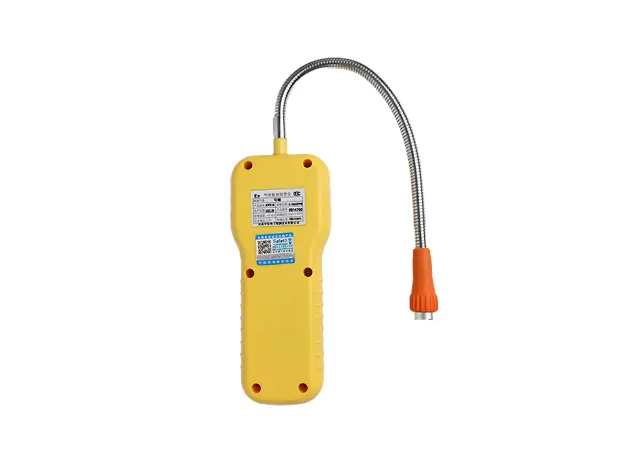

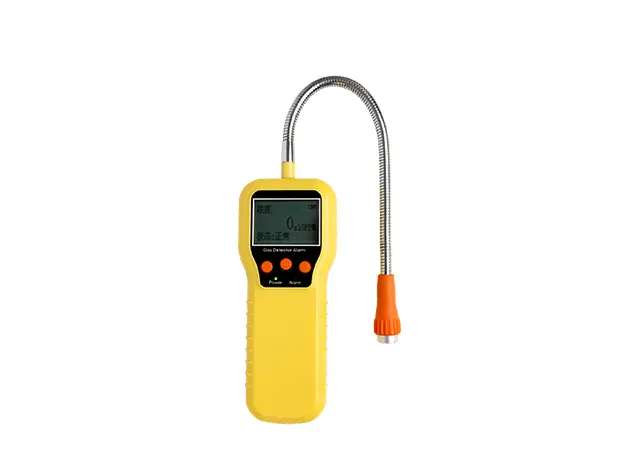

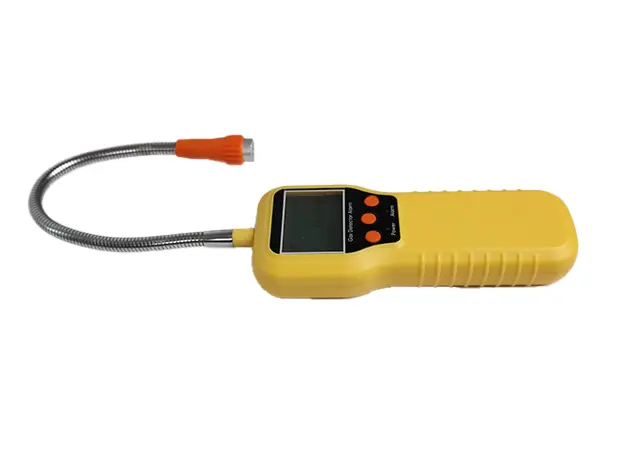

OT130 Portable Gas Leak Detector

Trace a suspected gas leak with a portable detector and an extended probe for difficult-to-reach points.

Get closer to the leak source
The listed flexible probe and adjustable range help inspect joints, fittings and other accessible points.
Notice a rising reading
Local alarm indication and adjustable high/low levels help the operator recognize a change during inspection.
Check instrument condition
Startup self-test, sensor-fault indication and low-voltage warning support routine field checks.

Tell us the target gas, leak-search location and probe reach you need.

Overview

The series is an industrial gas leakage detector with high sensitivity and wide range, which can detect different gases according to different types of sensors. Using high resolution do matrix liquid crystal display technology, the display is direct and clear.The leak detector can detect combustible and toxic gases.

Key Features

Leak Detection & Alarms

Triple Alarm (Audible, Visual & Vibration)
Customizable Alarm Setpoints
Quick detection of gas leakage points
Extended flexible probe with adjustable range
Sensor fault detection and startup self-test function
Quick preheating and quick response time
Two-level alarm instruction, adjustable high and low alarm
Gas Leak Detector
High Sensitivity & Stable Reliability
Sound alarm signal and temperature display function

Display, Power & Field Use

Big-screen Chinese menu operation
low voltage prompt and under voltage automatic shutdown
convenient zero adjustment, convenient and quick
Standby Time ≥ 8 Hours
Intrinsically Safe & Superior Explosion-Proof
IP65 Waterproof & Dustproof / LCD Display

Technical Specifications

Principle of detection	semiconductor, catalysis, electrochemistry
Test gas	flammable or poisonous gas
Range	flammable (0-10000ppm /0-100%LEL) toxic (0-5000PPM)
Sampling method	natural diffusion
Sensitivity	better than 1ppm/%LEL
Working conditions	temperature- 10 ℃ ~ 40 ℃
Humidity	93%RH(no condensation)
Response time	10s
Indication	LCD liquid crystal display
Charging time	less than 5 hours
Working hours	flammable (8 hours) toxic (200 hours)
Sensor life	2 years
Power source	3.7 v 1300mah lithium-ion rechargeable battery
Weight	about 400g
Overall dimension	169x69x30mm

Available Gases & Detection Ranges

The gases and ranges below are configuration options. OT130 Portable Gas Leak Detector; confirm the final sensor combination and ranges with our team.

Common Gas Parameter listing
Gas detected	Measuring Range	Optional Range	Resolution Rat	Response Time
LEL -combustible gas	0-100%LEL	0-100%VOL (Infrared or catalytic )	1%LEL/1%vol	≤10s
carbon monoxide	0-1000PPm	0-500/2000/5000PPm	0.1/1PPm	≤10s
TVOC	0-100PPM	0-100PPM	0.1PPm/1PPM	≤15s
hydrogen	0-100%LEL	0-1000PPM	1%LEL/1PPM	≤15s
natural gas	0-100%LEL	0-100%LEL	1%LEL	≤10s
Oxygen-O2	0-30%VOL	0-30%、0-100%VOL	0.1%vol	≤10s
ozone	0-10PPm	0-20、100PPm	0.01PPm/0.1PPM	≤15s
hydrogen sulfide-H2S	0-100PPm	0-50、200、1000PPm	1/0.1PPm	≤10s
Methane-CH4	0-100%LEL	0-100%VOL	1%LEL/1%vol	≤10s
fluorine	0-10PM	0-1、10PPM	1/0.1PPm	≤15s
hydrogen chloride	0-20PPm	0-20/50PPm/100PPM	0.01/0.1PPm	≤15s
Nitrogen-N2	0-30%VOL	0-30%VOL、100%VOL	0.1%LEL/1PPM	≤10s
hydrogen	0-100%LEL	0-1000PPm	1%LEL/0.1PPm	≤15s
chlorine	0-20PPm	0-10、100PPm	0.1PPm	≤15s
ammonia gas	0-100PPm	0-50、500、1000PPm	1/0.1PPm	≤15s
oxynitride	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
methanal	0-20PPm	0-50、100PPm	1/0.1PPm	≤15s
sulfur dioxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
nitric oxide	0-250PPm	0-500、1000PPm	1PPm	≤15s
nitrogen oxide	0-20PPm	0-50、1000PPm	0.1/1PPm	≤15s
phosphine	0-20PPm	0-20、100PPm	0.1PPm	≤15s
acrylonitrile	0-100PPM	0-100PPm	0.1/1PPm	≤15s
carbon dioxide	0-5000PPm	0-1%/5%/10%VOL(Infrared )	1PPM/0.01%VOL	≤15s
hydrogen fluoride	0-10PPm	0-1、10、50、100PPM	0.01/0.1PPm	≤15s
Xylene/methylbenzene	0-20PPm	0-5、10、50、100PPm	0.01/0.1PPm	≤15s
oxirane	0-100PPm	0-100PPm	1/0.1PPm	≤15s
For other gases and measuring ranges, please contact us directly!
Note: Not all gases and range are listed, if you need more information, please contact us.
