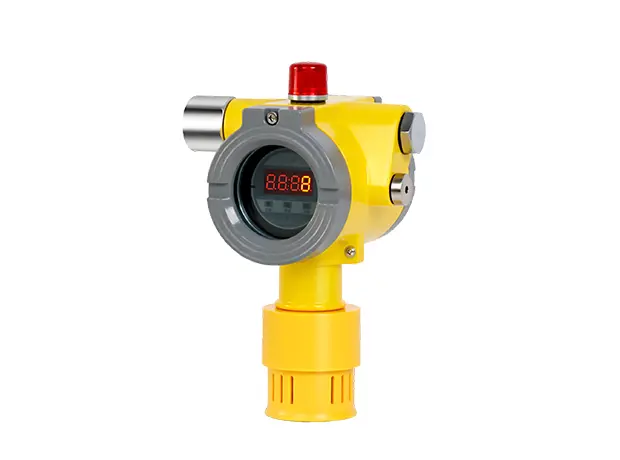

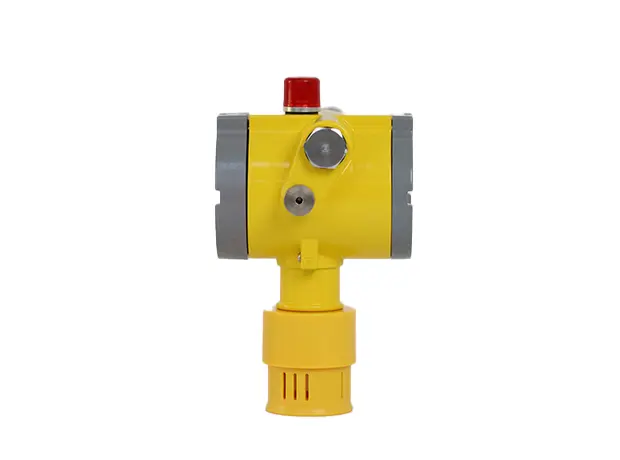

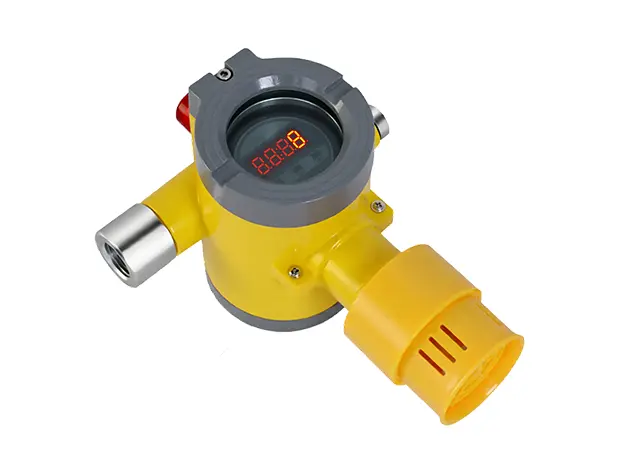

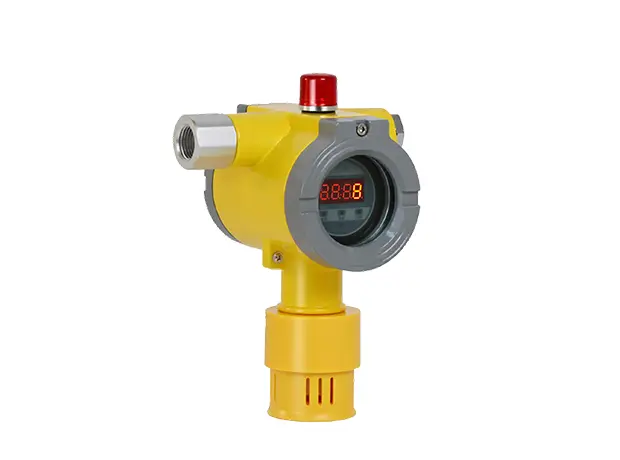

GT-TCB3 Point Type Combustible Gas Detector

Home > Products
GT-TCB3 Point Type Combustible Gas Detector

GT-TCB3 Point Type Combustible Gas Detector

Watch for combustible gas at a fixed point with a local warning and a signal for the wider control system.

  • Place detection where it matters

    Diffusion sensing and selectable gas configuration allow the fixed detector to be specified for the local hazard.

  • Alert people nearby

    Integrated audible and visual alarms and configurable setpoints make the warning visible at the installation point.

  • Simplify system upkeep

    Remote-control operation, field calibration and the listed signal options support commissioning and maintenance planning.

IP66 protection class. Confirm target gas, installation location, alarm thresholds and the required output version.

Request a Quote WhatsApp

Overview

The TCB3 series point-type combustible gas detectors for industrial and commercial applications are cutting-edge gas detection instruments developed by our company. Featuring high-performance catalytic combustion gas sensors and microcontroller technology, these detectors are manufactured using precision SMD (Surface-Mount Device) processes. They offer excellent repeatability, reliable temperature and humidity performance, extended service life, and user-friendly operation. This product is suitable for gas leakage concentration detection in industrial and commercial environments. The detector converts gas concentration signals in the air into electrical signals, which can be output in either three-wire (4～20) mA current signal or four-wire RS485 digital signal. It features long transmission distance and excellent anti-interference performance. This product is designed for gas safety detection, alarm, and control in environments containing flammable gases, including petroleum refining, chemical processing, storage and gas stations, gas pipelines, municipal utility tunnels, fire monitoring systems, and spray painting rooms. It is suitable for hazardous areas with explosive flammable gases classified as Grade II A to II C and temperature ranges from T1 to T6

Key Features

Gas Sensing & Local Warnings

  • Customizable Alarm Setpoints
  • Fast response speed
  • Diffusion detection
  • Integrated audible & visual alarm
  • Flameproof Design
  • Wide Gas Selection
  • High Sensitivity & Stable Reliability
  • Modular Sensor Design for Easy Replacement & Maintenance

Control-System Signals & Connections

  • Optional 4-Bus Signal or 4-20mA Signal

Installation, Power & Service

  • Infrared remote control operation
  • On-Site Calibration
  • Rear terminal block for wiring
  • IP66 Waterproof & Dustproof
  • OEM & ODM & OBM
  • Optional LCD Display

Technical Specifications

Applicable gas  combustible, toxic hazardous gas, oxygen etc.
Sampling method  natural diffusion
Detection principle  catalytic bead, electrochemical, infrared, laser, semiconductor etc.
Measuring range  0~100%LEL (combustible); 0~100ppm (toxic), varies by gas type
Display method  LED digital display
Operating voltage  DC24V±15%
Output signal  3-wire 4-20mA / 4-bus RS485 / 2-wire signal output (subject to order specification and nameplate)
Power consumption  3W
Alarm  audible & visual alarm
Response time  ≤30s (combustible), according to gas type
Ambient temperature  -40℃~+70℃ (combustible); -25℃~+55℃ (toxic)
Relative humidity  20~93%RH, non-condensing
Accuracy  ±3%FS (combustible), according to gas type
Relay capacity  2 groups of switch output
Installation method  pipe-clamping or bracket mounting
Connection cable  RVVP 3×1.5mm², RVVP 4×1.5mm², 2×1.5mm²
Connection thread  M20×1.5mm, optional adaptor for G1/2
Ex certificate No.  CE25.7397X
Ex mark  Ex db II CT6 Gb; Ex tb IIIC T80℃ Db
Protection grade  IP66
Metrology approval No.  2018C242-41
Transmission distance  ≤1000m
Product dimension  L186×W150×H115 mm

Videos

Available Gases & Detection Ranges

The gases and ranges below are configuration options.GT-TCB3 Point Type Combustible Gas Detector; confirm the final sensor combination and ranges with our team.

Common Gas Parameter listing
Gas detected Measuring Range Optional Range Resolution Rat Response Time
LEL -combustible gas 0-100%LEL 0-100%VOL (Infrared or catalytic ) 1%LEL/1%vol ≤10s
carbon monoxide 0-1000PPm 0-500/2000/5000PPm 0.1/1PPm ≤10s
TVOC 0-100PPM 0-100PPM 0.1PPm/1PPM ≤15s
hydrogen 0-100%LEL 0-1000PPM 1%LEL/1PPM ≤15s
natural gas 0-100%LEL 0-100%LEL 1%LEL ≤10s
Oxygen-O2 0-30%VOL 0-30%、0-100%VOL 0.1%vol ≤10s
ozone 0-10PPm 0-20、100PPm 0.01PPm/0.1PPM ≤15s
hydrogen sulfide-H2S 0-100PPm 0-50、200、1000PPm 1/0.1PPm ≤10s
Methane-CH4 0-100%LEL 0-100%VOL 1%LEL/1%vol ≤10s
fluorine 0-10PM 0-1、10PPM 1/0.1PPm ≤15s
hydrogen chloride 0-20PPm 0-20/50PPm/100PPM 0.01/0.1PPm ≤15s
Nitrogen-N2 0-30%VOL 0-30%VOL、100%VOL 0.1%LEL/1PPM ≤10s
hydrogen 0-100%LEL 0-1000PPm 1%LEL/0.1PPm ≤15s
chlorine 0-20PPm 0-10、100PPm 0.1PPm ≤15s
ammonia gas 0-100PPm 0-50、500、1000PPm 1/0.1PPm ≤15s
oxynitride 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
methanal 0-20PPm 0-50、100PPm 1/0.1PPm ≤15s
sulfur dioxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
nitric oxide 0-250PPm 0-500、1000PPm 1PPm ≤15s
nitrogen oxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
phosphine 0-20PPm 0-20、100PPm 0.1PPm ≤15s
acrylonitrile 0-100PPM 0-100PPm 0.1/1PPm ≤15s
carbon dioxide 0-5000PPm 0-1%/5%/10%VOL(Infrared ) 1PPM/0.01%VOL ≤15s
hydrogen fluoride 0-10PPm 0-1、10、50、100PPM 0.01/0.1PPm ≤15s
Xylene/methylbenzene 0-20PPm 0-5、10、50、100PPm 0.01/0.1PPm ≤15s
oxirane 0-100PPm 0-100PPm 1/0.1PPm ≤15s
For other gases and measuring ranges, please contact us directly!
Note: Not all gases and range are listed, if you need more information, please contact us.
