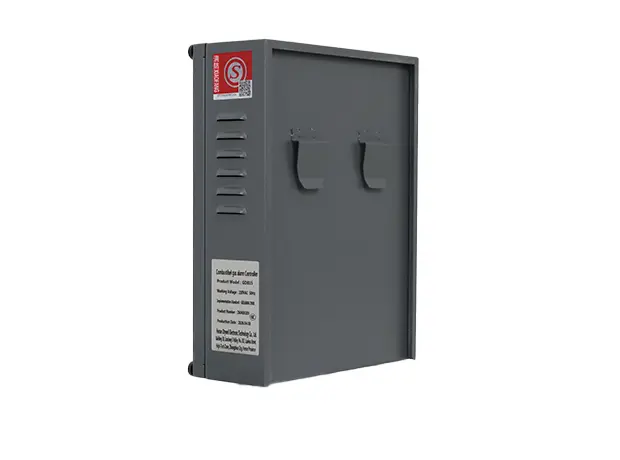

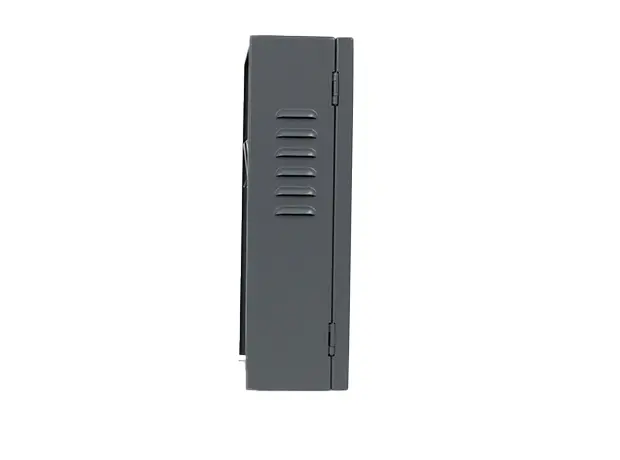

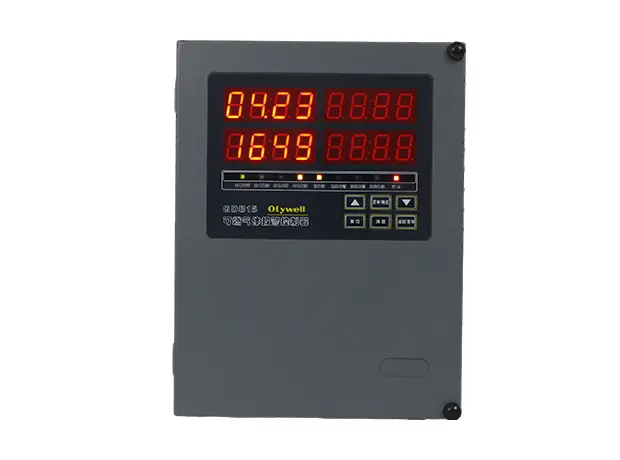

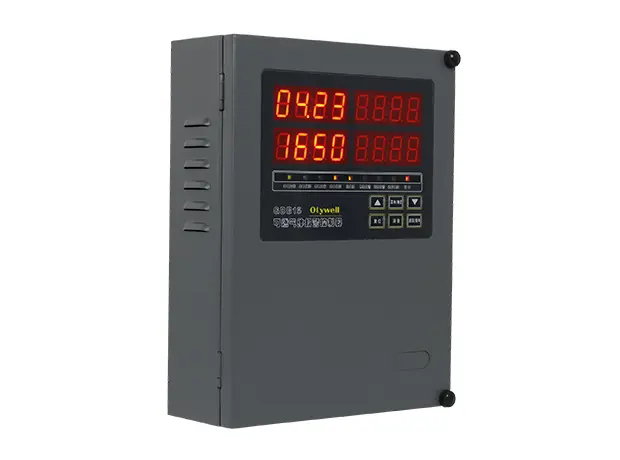

GDB15 Gas Alarm Controller

Home > Products
GDB15 Gas Alarm Controller

GDB15 Gas Alarm Controller

Coordinate bus-connected gas detectors and response equipment with one alarm controller.

  • Bring detector points together

    The listed two-loop bus interface and selectable wiring arrangements support the planned detector layout.

  • Make alarms actionable

    Adjustable high/low thresholds, local warnings and switch outputs help connect detection to an on-site response.

  • Keep operation controlled

    Password management, manual reset or mute and alarm/fault records support routine operation and review.

Tell us the detector count, bus type, wiring plan and required alarm outputs.

Request a Quote WhatsApp

Overview

GDB15 gas alarm controller is a 485 output signal controller developed by our company, which has the characteristics of good stability, high accuracy and intelligent parameter setting. The external control port is rich, the user can freely choose the type of detector and access port, and can carry out on-site monitoring and alarm through simple setting and wiring.

The controller is mainly used in the occasion of monitoring combustible gas, showing the numerical indicator of the gas to be tested. When the indicator of a certain gas to be tested on site does not meet the set standard, the system will automatically carry out a series of alarm actions, such as alarm, exhaust, trip, etc. (according to different Settings of the user).

Key Features

Alarm Settings & Response

  • Customizable Alarm Setpoints & Device Time
  • High/low alarm threshold configuration

Detector Inputs, Outputs & Records

  • 2-Loop 4-Bus Interface, Compatible with 3085 & 3082 4-Bus Gas Detectors
  • Freely selectable split/bus wiring mode
  • 2-Channel Switch Quantity Output
  • 2-Channel Active Output (220V Pulse & 24V Pulse)
  • Alarm & Fault Record Storage
  • Optional 4G Cloud Upload

Operator Controls & Power

  • Digital display & English keypad operation
  • Manual reset & mute function
  • Time display & management function
  • Button Operation
  • Password Management
  • Automatic Main/Backup Power Switching
  • OEM & ODM & OBM

Technical Specifications

Technical Specifications
Mounting mode  Wall mounted
Indicating mode  digital tube display, sound and light alarm
Operating temperature  -10℃ ~ 50℃
Working humidity  （20 ~ 93）%RH
Main power supply  AC220V±15%, 50Hz± 1% (main power insurance 3A)
Backup power supply  two DC12V/1.3AH rechargeable batteries in series (backup power insurance 3A)
Power rate  ≤10W
Detector supply voltage  DC24V（1±15%）
Dimensions  L295×W226×H86 mm
Cable between the detector and the host  ≥RVVP 4 x 1.5mm2
Communication distance between the detector and the host  ≤1000m
Number of local channels  1 Detector loop
Alarm record  ≤3000
Alarm output  2 groups
