G90 Portable Gas Detection Alarm

Home > Products

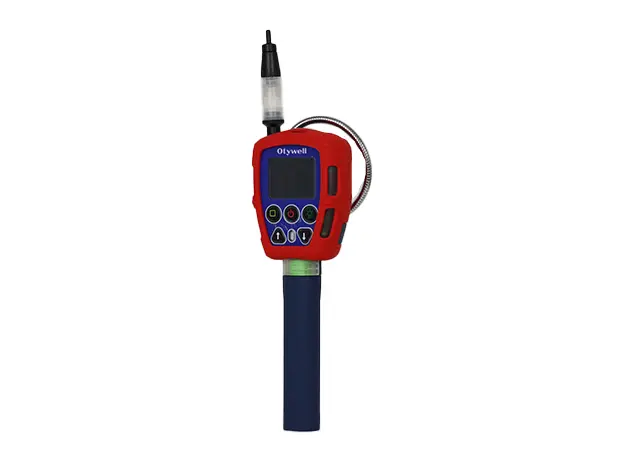

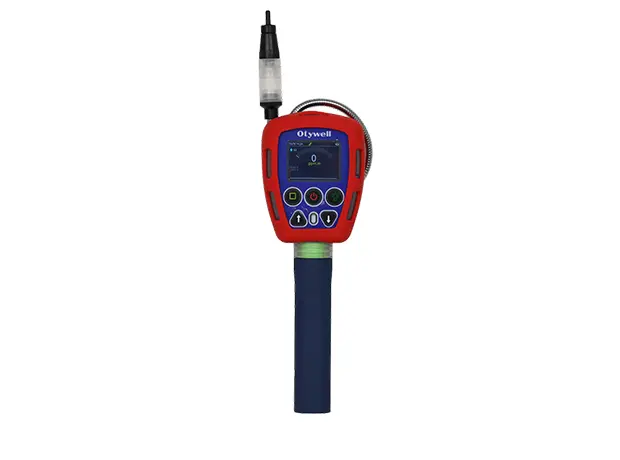

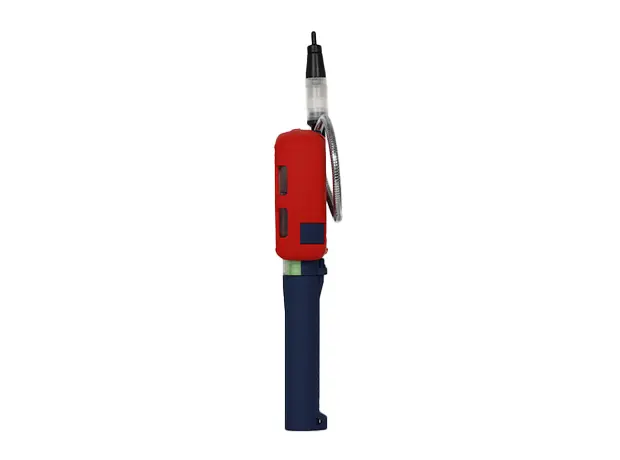

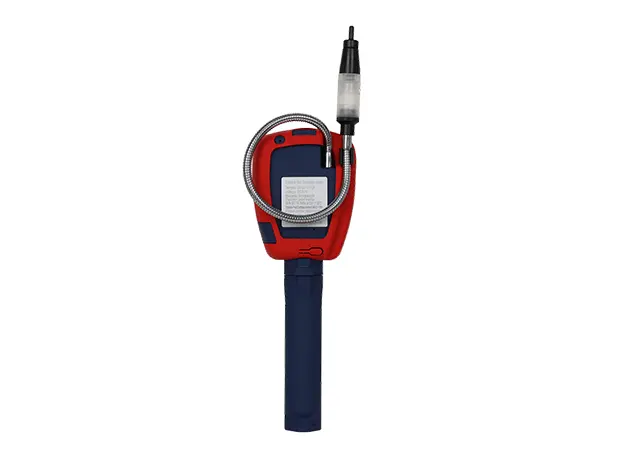

G90 Portable Gas Detection Alarm

G90 Portable Gas Detection Alarm

Configure G90 for the leak-search or multi-gas monitoring task instead of choosing one fixed detection setup.

  • Choose a suitable sampling mode

    The source lists diffusion and pumped probe versions as well as a pumped multi-gas configuration; select the version for the actual measurement task.

  • Investigate different leak scenarios

    Probe, methane triple-range and optional remote-laser configurations address different inspection distances and concentration ranges.

  • Keep the team connected

    The listed Wi-Fi, Bluetooth and optional 4G/GPS functions support data sharing when included in the ordered version.

G90 has distinct versions; confirm the exact sampling method, sensors, range and optional laser module.

Request a Quote WhatsApp

Overview

Multi-Functional Gas Detector
This instrument supports multiple detection modes & configuration combinations:
Probe Leak Detector (Natural Diffusion Sampling)
Probe Leak Detector (Pump-Sampling)
Multi-Gas Detector Alarm (Pump-Sampling)
Triple-Range Methane Detector (Pump-Sampling)
Remote Laser Detector.
The remote laser version can be flexibly matched with any of the above detection modes.

Key Features

Gas Measurement & Worker Alerts

  • Multi-Gas Detection
  • Three-Range Leak Detector
  • Pump Blockage Alarm

Records, Positioning & Connectivity

  • Built-in WIFI & Bluetooth Functions
  • Optional 4G + GPS Function

Display, Power & Calibration

  • Optional Laser Telemetry
  • OEM & ODM & OBM

Technical Specifications

Exclusive Technical Parameters for Probe Gas Leak Detector
Detection Method  Probe leak detection, diffusion type / pump suction type
Detection Principle  Semiconductor sensor
Applicable Gases  Flammable gases
Measuring Range  (0～10000) µmol/mol (ppm)
Resolution  1 µmol/mol (ppm)
Accuracy Class  ±3%FS
Alarm Setpoint  Adjustable
T90 Response Time  ≤30 s
Exclusive Technical Parameters for Multi-Gas Detection Alarm Instrument (Pump Suction Type)
Detection Method  Pump suction type
Detection Principle  Catalytic bead, electrochemical, infrared, semiconductor, etc.
Applicable Gases  Flammable gases, toxic & hazardous gases, oxygen, etc.
Measuring Range  (0～100) %LEL (flammable gas); (0～100) µmol/mol (ppm) (toxic gas), etc. (varies by gas type)
Resolution  1%LEL, 1 µmol/mol (ppm), 0.1 µmol/mol (ppm) / %VOL
Accuracy Class  ±3%FS (for flammable gases, varies by gas type)
Alarm Setpoints  Low alarm at 20%LEL, high alarm at 50%LEL (for reference)
Response Time T90  ≤30 s (for flammable gases, varies by gas type)
Exclusive Technical Parameters for Triple-Range Methane Detector (Pump Suction Type)
Detection Method  Pump suction type
Detection Principle  Infrared sensor, semiconductor sensor
Applicable Gases  Flammable gases
Target Gas  Methane
Measuring Range  (0～100) %LEL, (0～100) %VOL, (0～10000) µmol/mol (ppm)
Resolution  1%LEL, 0.1%VOL, 1 µmol/mol (ppm)
Accuracy Class  ±3%FS
Technical Parameters for Laser Remote Detection Model
Applicable Gases  Flammable gases
Target Gas  Methane
Measuring Range  (0～50000) ppm·m
Detectable Distance  Optional (0–15) m / (0–30) m
Minimum Detectable Limit  5 ppm·m
Accuracy  ±10%FS
Response Time  0.5 s
Universal Technical Parameters for All Models
Display Mode  LCD Display
Ambient Temperature  −25℃ ~ +55℃
Relative Humidity  (20～93)% (non-condensing)
Operating Voltage  DC 3.7 V
Battery Capacity  6000 mA rechargeable lithium-ion battery
Charging Time  ＜5 h
Continuous Operating Time  ≥8 h (at normal ambient temperature)
Overall Dimensions  L291mm × W100mm × H49mm
Explosion-proof Certificate No.  CLEx24.1023
Explosion-proof Mark  Ex ia ⅡC T4 Ga; Ex ib ⅢC T130℃ Db
Ingress Protection Rating  IP66 or higher

Videos

Available Gases & Detection Ranges

The gases and ranges below are configuration options.G90 Portable Gas Detection Alarm; confirm the final sensor combination and ranges with our team.

Common Gas Parameter listing
Gas detected Measuring Range Optional Range Resolution Rat Response Time
LEL -combustible gas 0-100%LEL 0-100%VOL (Infrared or catalytic ) 1%LEL/1%vol ≤10s
carbon monoxide 0-1000PPm 0-500/2000/5000PPm 0.1/1PPm ≤10s
TVOC 0-100PPM 0-100PPM 0.1PPm/1PPM ≤15s
hydrogen 0-100%LEL 0-1000PPM 1%LEL/1PPM ≤15s
natural gas 0-100%LEL 0-100%LEL 1%LEL ≤10s
Oxygen-O2 0-30%VOL 0-30%、0-100%VOL 0.1%vol ≤10s
ozone 0-10PPm 0-20、100PPm 0.01PPm/0.1PPM ≤15s
hydrogen sulfide-H2S 0-100PPm 0-50、200、1000PPm 1/0.1PPm ≤10s
Methane-CH4 0-100%LEL 0-100%VOL 1%LEL/1%vol ≤10s
fluorine 0-10PM 0-1、10PPM 1/0.1PPm ≤15s
hydrogen chloride 0-20PPm 0-20/50PPm/100PPM 0.01/0.1PPm ≤15s
Nitrogen-N2 0-30%VOL 0-30%VOL、100%VOL 0.1%LEL/1PPM ≤10s
hydrogen 0-100%LEL 0-1000PPm 1%LEL/0.1PPm ≤15s
chlorine 0-20PPm 0-10、100PPm 0.1PPm ≤15s
ammonia gas 0-100PPm 0-50、500、1000PPm 1/0.1PPm ≤15s
oxynitride 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
methanal 0-20PPm 0-50、100PPm 1/0.1PPm ≤15s
sulfur dioxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
nitric oxide 0-250PPm 0-500、1000PPm 1PPm ≤15s
nitrogen oxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
phosphine 0-20PPm 0-20、100PPm 0.1PPm ≤15s
acrylonitrile 0-100PPM 0-100PPm 0.1/1PPm ≤15s
carbon dioxide 0-5000PPm 0-1%/5%/10%VOL(Infrared ) 1PPM/0.01%VOL ≤15s
hydrogen fluoride 0-10PPm 0-1、10、50、100PPM 0.01/0.1PPm ≤15s
Xylene/methylbenzene 0-20PPm 0-5、10、50、100PPm 0.01/0.1PPm ≤15s
oxirane 0-100PPm 0-100PPm 1/0.1PPm ≤15s
For other gases and measuring ranges, please contact us directly!
Note: Not all gases and range are listed, if you need more information, please contact us.

Request a Quote

Tell us the target gas, measuring range, application and quantity. G90 has distinct versions; confirm the exact sampling method, sensors, range and optional laser module.
