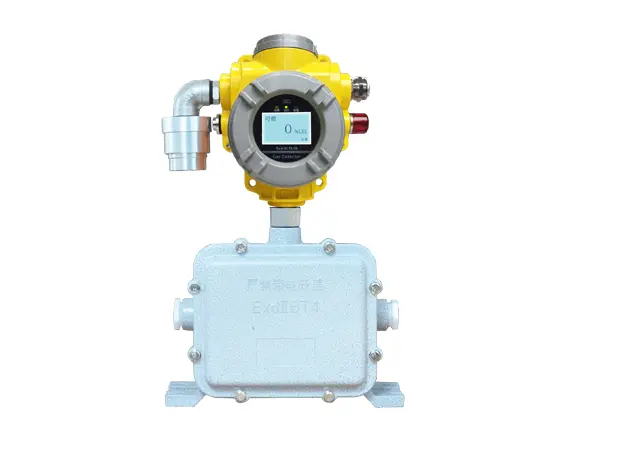

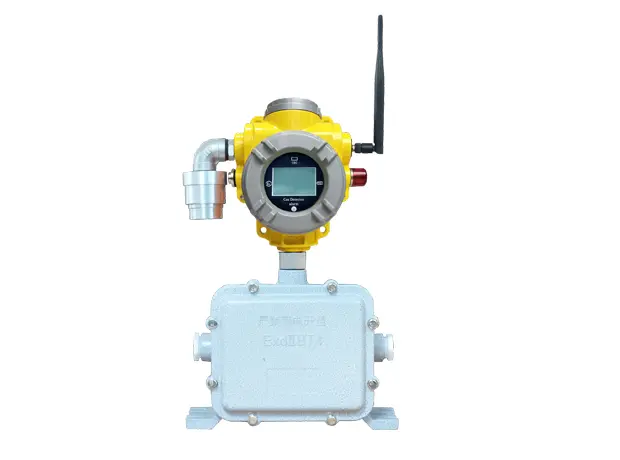

BT-GYQ-TCB2 Point-Type Gas Detector (Battery-Powered)

Home > Products
BT-GYQ-TCB2 Point-Type Gas Detector (Battery-Powered)

BT-GYQ-TCB2 Point-Type Gas Detector (Battery-Powered)

Watch a selected gas at a fixed point when running new signal cables is difficult.

  • Plan power and installation

    The listed built-in lithium battery supports a battery-powered installation; confirm maintenance interval for the chosen configuration.

  • Warn people at the detector

    Natural-diffusion sensing and integrated sound/light indication provide local monitoring and alerts.

  • Share the reading remotely

    RS485, LoRa and GPRS are listed as connection choices; select the output supported by the ordered version.

Confirm gas, battery service plan, hazardous-area requirements and communication option.

Request a Quote WhatsApp

Overview

The TCB2 gas detector utilizes high-performance sensing components and microcomputer control technology, manufactured with advanced automated surface-mount processes. It features a built-in audible buzzer and flashing indicator lights, providing real-time monitoring and display of on-site gas concentrations.
This multi-function point-type detector converts airborne gas concentration signals into electrical signals for local display and remote transmission via RS485 (with optional LoRa and GPRS). It is widely applicable in industrial environments requiring explosion, poisoning, and asphyxiation prevention, including chemical plants, smelting and papermaking, refrigeration and firefighting, gas and catering, rubber, wastewater treatment, pharmaceutical casting, petroleum refining, mining and power generation, municipal firefighting, and telecommunications.

Key Features

Gas Sensing & Local Warnings

  • Integrated Audible & Visual Alarm
  • Utilizes imported gas-sensitive elements for high precision and minimal zero drift.
  • Natural Diffusion Sampling Method
  • Flameproof & Intrinsically Safe
  • Wide Gas Selection: Combustible, Oxygen & Toxic

Control-System Signals & Connections

  • Two-Channel Switch Quantity Signals
  • RS485 / LoRa / GPRS Output

Installation, Power & Service

  • Infrared Remote Control Technology
  • Suitable for Zone 1 and Zone 2 hazardous areas in factory environments.
  • LCD Display
  • Dual-Chamber Structure
  • Built-In Lithium Battery, No Wiring Needed

Technical Specifications

Detected Gases  Combustible gases, Oxygen, and Toxic gases
Sampling Method  Natural diffusion
Detection Principles  Catalytic combustion, Electrochemical, Infrared, PID, etc.
Measurement Range  (0-100)%LEL; 0-PPM
Resolution  1%LEL; 1PPM / 0.1PPM
Display Mode  LCD or LED Digital Display
Transmission Method  LoRa Wireless Transmission (Optional)
Power Supply  Built-in Lithium Battery
Operating Duration Combustible/Infrared: 15 Days; Toxic/Oxygen: 30 Days (Under normal working conditions)
Single Charge Duration  48 Hours
Response Time  T90 < 30s (Combustible); T90 < 60s (Toxic)
Explosion-Proof Type  Flameproof + Intrinsically Safe
Working Environment  -40℃ ~ 70℃ (Combustible); -20℃ ~ 50℃ (Toxic)
Humidity  < 93%RH
Environmental Pressure  (86 ~ 106) kPa

Available Gases & Detection Ranges

The gases and ranges below are configuration options. BT-GYQ-TCB2 Point-Type Gas Detector (Battery-Powered); confirm the final sensor combination and ranges with our team.

Common Gas Parameter listing
Gas detected Measuring Range Optional Range Resolution Rat Response Time
LEL -combustible gas 0-100%LEL 0-100%VOL (Infrared or catalytic ) 1%LEL/1%vol ≤10s
carbon monoxide 0-1000PPm 0-500/2000/5000PPm 0.1/1PPm ≤10s
TVOC 0-100PPM 0-100PPM 0.1PPm/1PPM ≤15s
hydrogen 0-100%LEL 0-1000PPM 1%LEL/1PPM ≤15s
natural gas 0-100%LEL 0-100%LEL 1%LEL ≤10s
Oxygen-O2 0-30%VOL 0-30%、0-100%VOL 0.1%vol ≤10s
ozone 0-10PPm 0-20、100PPm 0.01PPm/0.1PPM ≤15s
hydrogen sulfide-H2S 0-100PPm 0-50、200、1000PPm 1/0.1PPm ≤10s
Methane-CH4 0-100%LEL 0-100%VOL 1%LEL/1%vol ≤10s
fluorine 0-10PM 0-1、10PPM 1/0.1PPm ≤15s
hydrogen chloride 0-20PPm 0-20/50PPm/100PPM 0.01/0.1PPm ≤15s
Nitrogen-N2 0-30%VOL 0-30%VOL、100%VOL 0.1%LEL/1PPM ≤10s
hydrogen 0-100%LEL 0-1000PPm 1%LEL/0.1PPm ≤15s
chlorine 0-20PPm 0-10、100PPm 0.1PPm ≤15s
ammonia gas 0-100PPm 0-50、500、1000PPm 1/0.1PPm ≤15s
oxynitride 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
methanal 0-20PPm 0-50、100PPm 1/0.1PPm ≤15s
sulfur dioxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
nitric oxide 0-250PPm 0-500、1000PPm 1PPm ≤15s
nitrogen oxide 0-20PPm 0-50、1000PPm 0.1/1PPm ≤15s
phosphine 0-20PPm 0-20、100PPm 0.1PPm ≤15s
acrylonitrile 0-100PPM 0-100PPm 0.1/1PPm ≤15s
carbon dioxide 0-5000PPm 0-1%/5%/10%VOL(Infrared ) 1PPM/0.01%VOL ≤15s
hydrogen fluoride 0-10PPm 0-1、10、50、100PPM 0.01/0.1PPm ≤15s
Xylene/methylbenzene 0-20PPm 0-5、10、50、100PPm 0.01/0.1PPm ≤15s
oxirane 0-100PPm 0-100PPm 1/0.1PPm ≤15s
For other gases and measuring ranges, please contact us directly!
Note: Not all gases and range are listed, if you need more information, please contact us.
